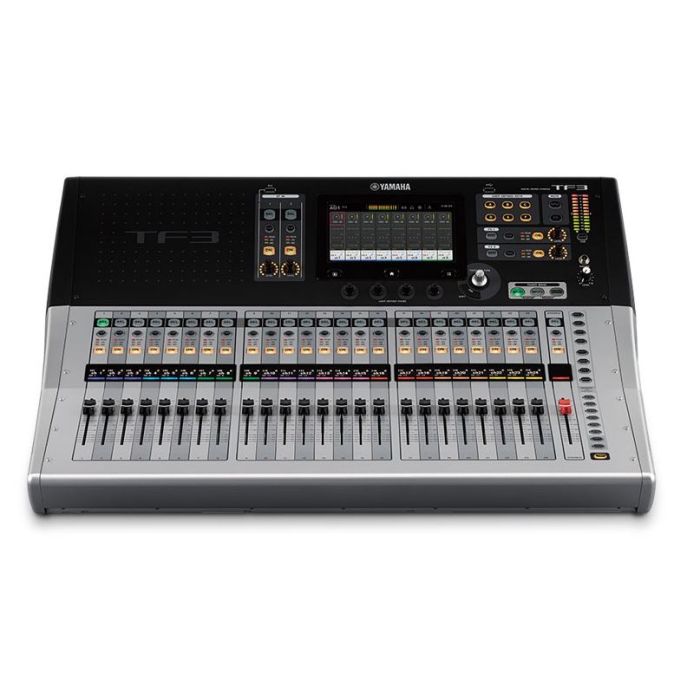

A compact, mobile digital mixing console. This is a mixer with an outstanding sound quality and very high reliability. Up to 8 effect processors can be loaded. If you connect the TF mixer to a wireless router (optional), you can control the TF from a distance with an iPad, for example. But did you know; you can do this with 10 users at the same time. This means you can also give musicians access to the TF mixer (with a personal login code). The user only gets access to his/her monitor mix and can make adjustments himself/herself (the rest of the table is not accessible). That's a really cool feature!
The Yamaha TouchFlow Operation is a user interface concept designed to make live mixing truly intuitive and easy, using a touch-sensitive LCD screen and a 'Touch & Turn' mode of operation. Other user-friendly features include the 1-button COMP and 1-button EQ that allow you to set up a complete compressor/equalizer with a single knob, the automatic GainFinder that allows you to quickly set the right gain for an input, and the QuickPro Preset with default settings for Shure, Sennheiser, and Audio Technica microphones.
The TF series comes with built-in D-pre microphone preamps; all models come standard with 8 mono mix busses, 6 stereo mix busses and a master LCR mix bus, 8 effects and 10 graphic equalizers. Additional inputs can be realized via a Dante network using an optional 64-channel NY64-D Dante interface card and up to three Tio168-D 16-channel stage boxes.
The TF3 is equipped with a USB interface that allows up to 34 channels to be recorded and played back by a computer without the need for an audio interface. The program 'Cubase AI' is even included. The TF can also record and play back stereo directly from and to a USB stick.
- 25 motor faders (24 channels + 1 master
)- 48 input mix channels (40 mono + 2 stereo + 2 return)
- 20 Aux buses (8 mono + 6 stereo) + Stereo + Sub-
8 DCA groups with 'Roll-out'
- 24 analog XLR/TRS combo mic/line inputs + 2 analog RCA stereo line inputs-
16 analog XLR outputs-
34 x 34 digital record/playback channels via USB 2.0 + 2 x 2 via a USB storage device-
1x Expansion slot for the Yamaha NY64-D audio interface card (Dante)
More Information
| Brand | Yamaha |
|---|---|
| Ean Code | 4957812560313 |
| Article number | 59035 |
