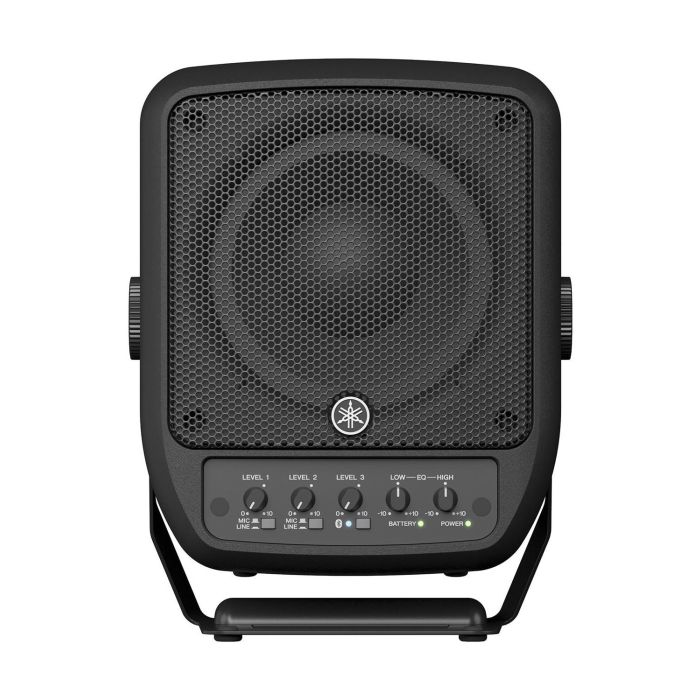

The Yamaha Stagepas 100 BTR is a super compact active speaker with built-in, 3-channel digital mixer. This is the battery operated version (-BTR version).
The speakers are driven by a class-D bi-amp amplifier with a maximum output of 100 watts. A 6.5-inch woofer and a 1.4-inch tweeter provide a maximum sound pressure level of 120 dB. Thus, the Stagepas 100 is ideally suited for musicians, conferences, entertainers, live music or similar applications. With its very compact dimensions, the speaker is easy to transport. The bracket allows you to adjust the speaker to any angle. And the bracket can be mounted on a microphone stand.
The integrated 3-channel digital mixer has several connection options with XLR/jack combo inputs, making it quick and easy to adjust the sound for each channel directly on the unit. The optional carrying bag (BAG-STP100) allows you to transport the speaker easily and safely.
Features:
- compact, portable speaker for mobile applications
- 100 watt class-D amplifier
- 6.5 inch woofer and 1.4 inch tweeter
- max SPL of 120 dB ensures very high volume without distortion
- integrated 3-channel digital mixer
- 2 band master EQ
- compatible with Hi-Z input (channel 2 only)
- equipped with mix-out
- carrying handle doubles as an adjustable stand
- Bluetooth audio streaming
- includes built-in battery for use without power connection, operational for up to 6 hours
- can be adjusted to any angle by handy bracket
- can be mounted on a microphone stand
With the built-in battery (capacity 60 Wh), you won't be short of power anytime soon! This battery has enough capacity for 6 hours of operating time. You can charge the battery in about 2 to 3 hours.
Specifications:
- 2-way, active 6.5 inch speaker + built-in 3 channel mixer
- Frequency range (-10 dB): 70 Hz - 20 kHz
- 90° x 90° dispersion (horizontal/vertical)
- Crossover: 1.8 kHz
- 120 dB max SPL
- Speaker:
- LF driver: 6 inch
- HF driver: 1 inch throat compression driver, 1.4 inch voice coil
- solid ABS housing
- steel speaker grill - Mixer:
- 3-channel
- analog inputs: mono mic/line x2, stereo line x1
- Bluetooth audio: A2DP (SBC, AAC), Ver 5.0, Class 1
- Class-D amplifier
- power: dynamic: 100 W - easy to mount on a microphone stand (standard 3/8" thread)
- optional carrying case (BAG-STP100) available for convenient transport
- Dimensions: 23.9 x 31 x 21.5 cm
- Weight: only 5.5 kg. (without power adapter)
Comes incl. PA-500 power adapter (so this speaker can also be connected to fixed voltage).
