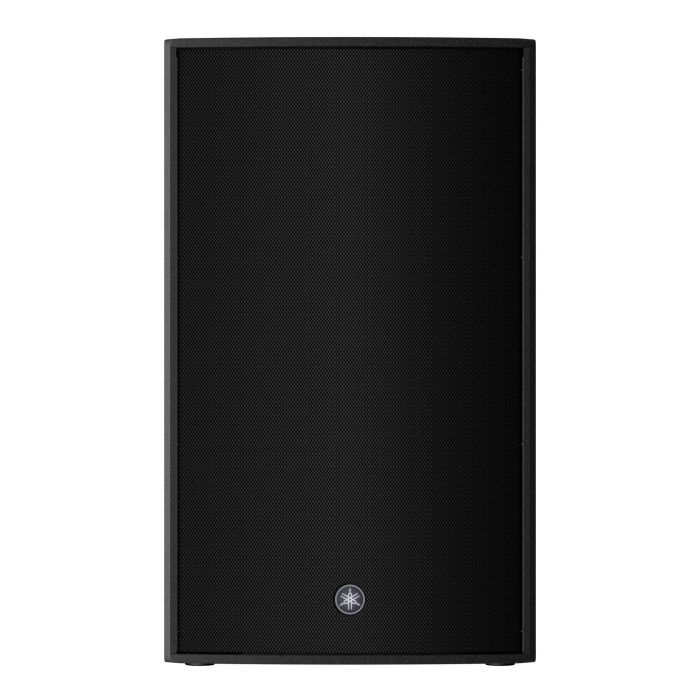

The Yamaha DZR15 is an active speaker and offers superior clarity and best-in-class SPL performance. This 2-way bi-amped PA speaker features a powerful 2000W Class D amplifier, a wide frequency range and can really handle any application. With its 15-inch woofer, this speaker has a powerful low-end response, so it can certainly be used as a full-range speaker as well.
Advanced DSP processing ensures high-resolution sound with super-low latency, while optimized presets and an intuitive LCD screen make choosing your settings a breeze. The DZR-15 fits into any configuration and can also function as a stage monitor. The DZR15 has a lightweight but durable plywood housing with a high-quality polyurea coating.
Advanced DSP Processing
Our Klundert Engineers are impressed with the DZR15's smart DSP processing. Yamaha's Advanced FIR-X tuning uses a combination of FIR filtering and corrective EQ to minimize phase distortion, ensuring smooth frequency response, stunning clarity and accurate sound reproduction. D-Contour is an intelligent multi-band compressor that maintains ultimate clarity even when you drive the DZR15 to its highest output level. D-Contour has two settings, FOH/MAIN and MONITOR mode, so you can tailor the DZR 15's sound to any application. You also get DSP limiters that protect both the power supply, power amplifiers and transducers from damage. Despite all this powerful DSP, the DZR15 remains user-friendly, thanks to optimized factory settings and an intuitive LCD screen.
Custom speakers
The Yamaha DZR15 features great-sounding, custom-designed speakers. The HF (high frequency) transducer includes a 2-inch voice coil and 1-inch compression driver, a titanium diaphragm and neodymium magnet in a heat-resistant aluminum frame. The LF (low frequency) transducer uses a large 3-inch voice coil, a die-cast aluminum frame and a powerful but lightweight neodymium magnet to handle the DZR15's bass. The DZR15 is not just about power, however. Its low-end response is powerful and tightly controlled.
Smart, ultraflexible design
The DZR15 fits into all kinds of configurations, thanks to its ultraflexible design. Its rotatable horn allows vertical or horizontal mounting. The speaker has a 90x50° dispersion from a vertical position. Thanks to the horn with constant directivity of the DZR-15, you get smooth, flat coverage - the innovative design minimizes the roll-off that conventional horns often cause.
Powerful Class D Amplifier
The DZR-15 is loaded with 2 kW of Class D power. It delivers an impressive sound pressure level of 139 dB SPL. Enjoy maximum power along with stable, worry-free operation, thanks to a universal switching power supply. Moreover, this amplifier is optimized for the DZR15's transducers, ensuring top sound quality.
Yamaha DZR15 features:
- 2-way active speaker with 2" HF and 15" LF drivers
- features a powerful 2,000 watt Class D amplifier and wide frequency range (34Hz - 20kHz)
- advanced FIR-X tuning uses a combination of FIR filtering and corrective EQ to minimize phase distortion
- D-Contour is an intelligent multiband compressor that maintains clarity at high output levels
- FOH/MAIN and MONITOR modes allow you to fine-tune your sound to your application
- DSP protection protects the power supply, power amplifiers and transducers from damage.
- optimized factory settings and an intuitive LCD screen make operation easy
- great-sounding, custom-made transducers (speakers)
- rotatable horn for vertical or horizontal mounting
- 90x50° dispersion from a vertical position
- constant-directional horn delivers even coverage with no roll-off
- lightweight but durable plywood cabinet with a high-quality polyurea coating
Yamaha DZR15 specifications:
- active two-way fullrange speaker
- DSP processor with presets
- wide frequency range from 34 to 20,000 Hz
- maximum sound pressure level of 139 dB (SPL)
- can be tilted as a monitor
- 35 millimeter stand recess
- multifunctional housing
- dimensions: 761 x 460 x 450 mm
- weight: 25.2 kg
