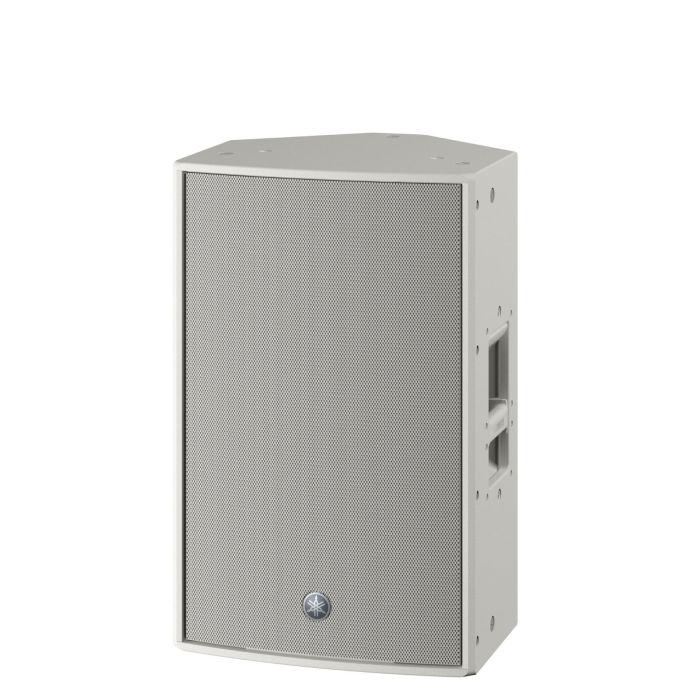

An active speaker, the Yamaha DZR12W offers superior clarity and best-in-class SPL performance. This 2-way bi-amped PA speaker features a powerful 2000W Class D amplifier, wide frequency range and can truly handle any application.
Advanced DSP processing ensures high-resolution sound with super-low latency, while optimized presets and an intuitive LCD screen make choosing your settings a breeze. The DZR12W fits into any configuration and can also function as a stage monitor. The DZR12W has a lightweight but durable plywood housing with a high-quality polyurea coating. This DZR12W comes in the color white.
Advanced DSP Processing
Our Klundert Engineers are impressed with the DZR12W's smart DSP processing. Yamaha's Advanced FIR-X tuning uses a combination of FIR filtering and corrective EQ to minimize phase distortion, ensuring smooth frequency response, stunning clarity and accurate sound reproduction. D-Contour is an intelligent multi-band compressor that maintains ultimate clarity even when you drive the DZR12 to its highest output level. D-Contour has two settings, FOH/MAIN and MONITOR mode, so you can tailor the DZR12's sound to any application. You also get DSP limiters that protect both the power supply, power amplifiers and transducers from damage. Despite all this powerful DSP, the DZR12 remains user-friendly, thanks to optimized factory settings and an intuitive LCD screen.
Custom speakers
The Yamaha DZR-12W features great-sounding, custom-designed speakers. The HF (high frequency) transducer includes a 2-inch voice coil and 1-inch compression driver, a titanium diaphragm and neodymium magnet in a heat-resistant aluminum frame. The LF (low-frequency) transducer uses a large 3-inch voice coil, a die-cast aluminum frame and a powerful but lightweight neodymium magnet to handle the DZR12's bass (12-inch LF driver). The DZR12 is not just about power, however. Its low-end response is tightly controlled, especially in the mid-bass and vocal range.
Smart, ultraflexible design
The DZR12 fits into any configuration, thanks to its ultraflexible design. Its rotatable horn allows vertical or horizontal mounting. The speaker has a 90x60° dispersion from a vertical position. Thanks to the DZR12's constant-direction horn, you get smooth, flat coverage - the innovative design minimizes the roll-off that conventional horns often cause.
Powerful Class D Amplifier
The DZR-12W is loaded with 2 kW of Class D power. It delivers an impressive sound pressure level of 137 dB SPL. Enjoy maximum power along with stable, worry-free operation, thanks to a universal switching power supply. Moreover, this amplifier is optimized for the transducers of the DZR10, ensuring top sound quality.
Yamaha DZR12W features:
- 2-way active speaker with 2" HF and 12" LF driver
- features a powerful 2,000 watt Class D amplifier and wide frequency range (39Hz - 20kHz)
- advanced FIR-X tuning uses a combination of FIR filtering and corrective EQ to minimize phase distortion
- D-Contour is an intelligent multiband compressor that maintains clarity at high output levels
- FOH/MAIN and MONITOR modes allow you to fine-tune your sound to your application
- DSP protection protects the power supply, power amplifiers and transducers from damage.
- optimized factory settings and an intuitive LCD screen make operation easy
- great-sounding, custom-made transducers (speakers)
- rotatable horn for vertical or horizontal mounting
- 90x60° dispersion from a vertical position
- constant-directional horn delivers even coverage with no roll-off
- lightweight but durable plywood cabinet with a high-quality polyurea coating
Yamaha DZR12W specifications:
- active two-way fullrange speaker with 12-inch low driver
- DSP processor with presets
- wide frequency range from 39 to 20,000 Hz
- maximum sound pressure level of 139 dB (SPL)
- can be tilted as a monitor
- 35 millimeter cutout for stand
- multifunctional housing
- dimensions: 64.6 x 41 x 39.4 cm
- weight: 21.4 kg
