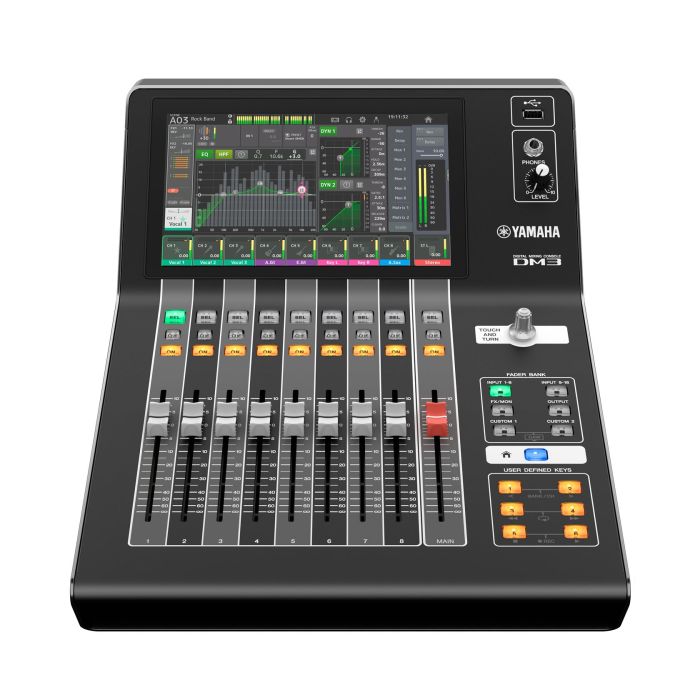

The Yamaha DM3S is a compact, digital mixer. The mixer has 22 channels and is packed with features in an ultra-compact size. Although packed with advanced features, the DM3S is a simple to operate thanks to its 9-inch touchscreen and universal turn-and-touch knob. This Yamaha DM3S is the "Standard" version. There is also a DM3, this is the version with an additional 16x16 Dante network connection.
This mixer gives you crystal clear 96 kHz audio supported by 16 excellent sounding microphone preamps and eight analog outputs. Yamaha has long been known for its digital effects, dating back to the famous REV and SPX processors of the 1980s, and this DM3S is loaded with two powerful effects processors.
The table has multiple recording and streaming options, including an 18x18 USB interface and 2x2 direct recording to a USB drive. A DAW remote mode with transport control and custom control via OSC, USB-MIDI and ProVisionaire round out the DM3S's extensive features. Looking for a super-compact, digital mixer with the highest achievable sound quality? Then the solution is simple: the Yamaha DM3S.
The Yamaha DM3 series is very robustly built. The metal housing is very solid and the mixer weighs only 6.5 kg. This mixer can take a beating! Ideal for live sound applications. Using the optional 19-inch bracket (RK-DM3) you can build the DM3 into a rack.
Yamaha sound and simple, intuitive operation
Yamaha's legacy of great-sounding mixing consoles goes back to the 1970s, and this DM3S continues that tradition. Capable of sampling rates up to 96kHz, the DM3S is an inspiring choice for live sound, studio mixing, recording and live streaming. What's more, it is easy to operate. The intuitive 9-inch touchscreen and convenient "one touch" rotary knob make operating this table a breeze, so you can concentrate on the mix/music instead of a complex, hard-to-use interface.
Lots of inputs and outputs in a super compact package
The Engineers at Klundert are impressed with how Yamaha has crammed a whopping 22 flexible I/O channels into the DM3S: 16 mono channels, one stereo channel and two stereo FX returns. You get six mono or three stereo mixes, two matrixes and a stereo bus, along with 16 excellent microphone preamps and eight convenient analog outputs. You also get an 18x18 USB audio interface for playback and recording, plus a built-in 2 x 2 USB recorder. All in a super compact, rock-solid enclosure.
Packed with state-of-the-art features
The DM3S is packed with advanced features. For starters, you can use the DM3S to control your DAW. You can control functions such as volume adjustment, playback and stop using the console's faders and knobs as physical controllers. You can also control the DM3S via OSC, USB-MIDI and Yamaha's powerful ProVisionaire software applications.
Software & App Applications
The DM3 StageMix is an iPad application that allows you to control the DM3 series through a simple and intuitive graphical interface. As a technician, you can control all kinds of mix
parameters wirelessly from the venue or from the stage. The MonitorMix application for iOS and Android devices provides control over each performer's monitor mix in the palm of their own hand. The DM3 Editor is a convenient application for Windows or Mac, and provides both online and offline configuration and editing of the mixer. The DM3 series comes with downloadable Cubase AI software from Steinberg.
Yamaha DM3S features:
- ultra-compact digital mixer with 16 mono channels, 1 stereo channel and 2 stereo FX returns
- 9-inch touchscreen and universal touch-and-turn knob provide easy operation and navigation
- capable of sample rates up to 96 kHz, for unprecedented sound quality
- 6 mono or 3 stereo mixes, 2 matrixes and 1 stereo bus
- 16 excellent microphone preamplifiers and 8 XLR analog outputs
- excellent sounding built-in DSP effects
- 18x18 USB audio interface for playback and recording
- 2x2 direct recording to a USB stick
- DAW remote control with transport control
- custom control via OSC, USB-MIDI and Yamaha's powerful ProVisionaire software applications
- rock solid build in a steel housing
Yamaha DM3S specifications:
- Yamaha DM3 Standard digital mixer, 22 channels
- microphone preamps: 12 x XLR, 4 x XLR-1/4" combo
- phantom power: 16 channels
- outputs: 8 x XLR
- Data I/O: 1 x RJ-45 (LAN)
- 1x 6.25 mm2 jack headphone jack
- USB: 1 x Type A, 1 x Type B
- USB computer connection (18x 18 channels)
- 9 x 100 mm motorized faders
- 96 kHz A/D
- suitable for DAW control
- 9 inch touch screen
- USB connection for storage / USB stick
- power supply via PA-L500 power adapter, 24V DC, 2.5A (included)
- dimensions: 32 cm (wide) × 45.5 cm (deep) × 14 cm (high)
- weight: 6.5 kg.
Comes with user manual, power adapter (PA-L500, including power cord) and Cubase AI download information.
