The Yamaha AG06 MK2 is an updated 6-channel mixer designed to support gaming, webcasting and live music streaming. This robust mixer gives 24-bit/192kHz audio quality, USB connectivity, onboard DSP effects and loopback functionality. This new Mk2 introduces a 1/8-inch, 4-pin mini-I/O (to enable a variety of streaming options), a mute button and a host of improvements to construction, design, internal circuitry and overall performance - all to ensure optimized, intuitive operation without sacrificing quality.
High-quality inputs

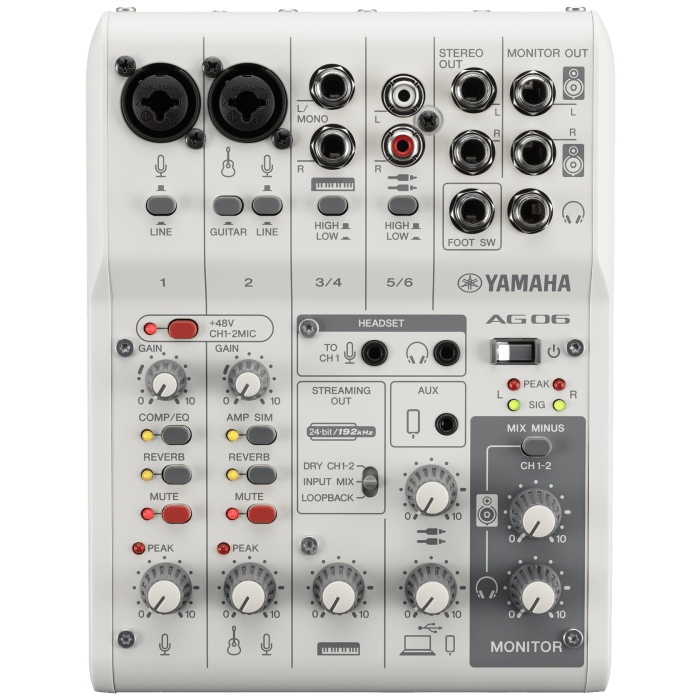

The AG06 Mk2 has a sleek design. The inputs and outputs are grouped across the top, leaving your control panel free for easy operation. Two multifunction jacks support XLR and jack inputs (balanced or unbalanced). The second channel has a dedicated guitar switch, allowing you to switch between guitar and line inputs, and a line switch, allowing you to attenuate the input sound. A third channel, with dedicated left and right channel inputs, lets you use the left channel for mono instruments, in addition to left and right RCA inputs. Furthermore, this mixer supports iOS to integrate apps like Zoom, Skype, Teams and FaceTime - all from your device.
Everything under control with built-in DSP FX
Keeping the levels right is paramount to a good stream, and the AG06 Mk2 has plenty of options. You have LEDs for visual feedback, monitor info for audio peaks, channel muting and built-in phantom power inputs designed for use with condenser microphones. Reverb, mute and comp/EQ functions make up the built-in DSP effects. The second channel also has an amplifier simulator, in addition to dedicated channel controls and gain control. The 3-way selector gives you control over your stream output, with options for dry (dry) channel 1-2, input mix, and loopback - the latter allowing the simultaneous integration of music or background audio from your laptop or iOS device, with your live inputs.
Offline versatility
Thanks to the AG06 Mk2's class-compliance mode, iOS integration opens up countless opportunities to get even more out of your mixer. This includes compatibility with Cubasis LE, a multi-touch sequencer app and reduced version of the Cubase DAW. In addition, the AG DSP Controller app provides more sophisticated control of onboard options, with a "1-touch" easy mode and an expert mode. Plus, the AG06 Mk2 comes with the Cubase AI DAW, providing a powerful, smooth path for producing high-quality recordings.
- USB connectivity for a variety of streaming needs
- 6-channel mixer allows for numerous microphone and instrument inputs
- 24-bit/192kHz audio resolution ensures high-quality audio output
- built-in DSP provides onboard FX and control, including compression, EQ, filtering and reverb
- precise interfacing tools put you in control of what is heard and how, including built-in loopback mode that lets you supplement your inputs with audio from your Mac/PC
- Class Compliance mode for iPad allows even more control options, including Cubasis LE production and the AG DSP Controller app.
- iOS connectivity allows you to use apps such as Zoom, Skype, Teams and FaceTime in your live stream, all from your device
- 2 built-in phantom power options are ideal for use with condenser microphones
- 1/8-inch/3.5mm 4-pin mini I/O jack offers more audio recording options, including sound effects, cues and background music from another device - with dedicated mix control
- USB DC power input: 1 - Type-C, 5 V DC, 900 mA
- power supply: 5 V DC, 900 mA
- power consumption: max. 4.5 W
- dimensions (WxDxH): 15.2 x 20.1 x 6.3 cm
- weight: 0.9 kg.
Included: USB 2.0 cable (1.5 m), quick guide, safety manual, download information for Wavelab Cast and Cubase AI.
