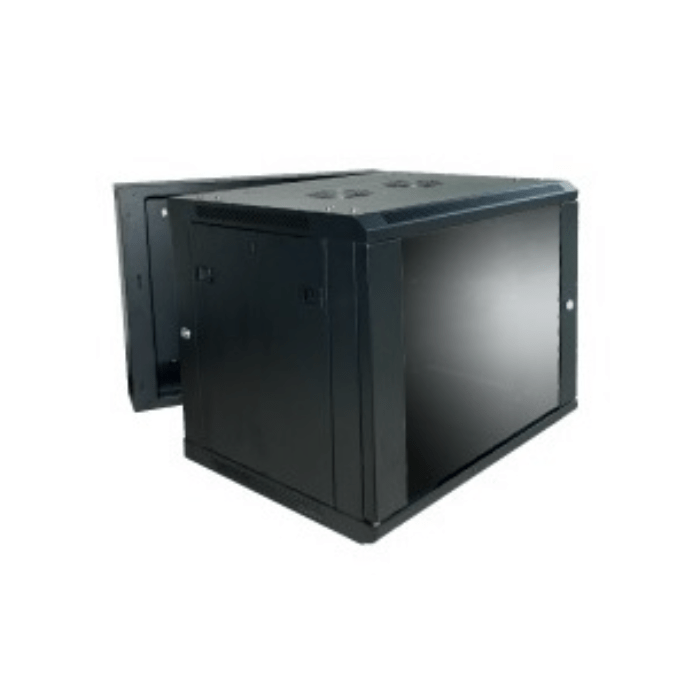

The T-racks WCD9-655 is the smallest in the series of double section wall-mounted patch cabinets. The patch cabinet has space for 9 units. The double section wall model racks are double hinged cabinets. This means that these cabinets can also be opened at the rear for easy access to the rear of the equipment. Handy for cabling and maintenance work.
The patch cabinet, just like the entire range of T-racks, is supplied fully assembled in the colour black (RAL9004).
Like the other wall-mounted patch cabinets, the WCD9-655 is supplied with a smoked glass front door made from safety glass and is fitted with a lock. In the lock are standard 2 keys supplied. The hinge part is also provided with a lock with 2 matching keys. The side panels are removable and can be fitted with optional locks. The top and bottom of the patch cabinet have been provided with provisions for the passage of cabling. The top is also prepared for the placement of fans. The fans are optionally available.
For placing equipment you can use the 19 inch profiles. You can also use the standard L-rail to give extra support to a device. Need more accessories, such as 19" drawers or blind and ventilation panels? Check out the extensive range of accessories in our webshop.
In short, if desired in combination with the accessories, the WCD9-655 offers a complete solution for small to medium sized systems such as network, audio, video or security systems neatly into place.
The T-racks WCD9-655 is the smallest in the series of double section wall-mounted patch cabinets. The patch cabinet has space for 9 units. In the standard configuration it is possible to place equipment with a build-in depth of 350 millimetres. However, if you adjust the 19-inch profile to the extreme position, you can place equipment with a maximum depth of 400 millimetres. For extra support of heavy equipment, 1 set of L-rails is standard delivered which can be used for support of the equipment.
- double hinged case
- number of units: 9 HE
- depth: 550 mm
- colour: black (RAL9004)
- smoked glass lockable front door
- load up to 50 kg
- complies with ANS/EIARS-310-D
Weight: 24 kg
Dimensions: 55 × 60 × 50 cm
More Information
| Brand | T-racks |
|---|---|
| Ean Code | 7434949615620 |
| Article number | 67799 |
