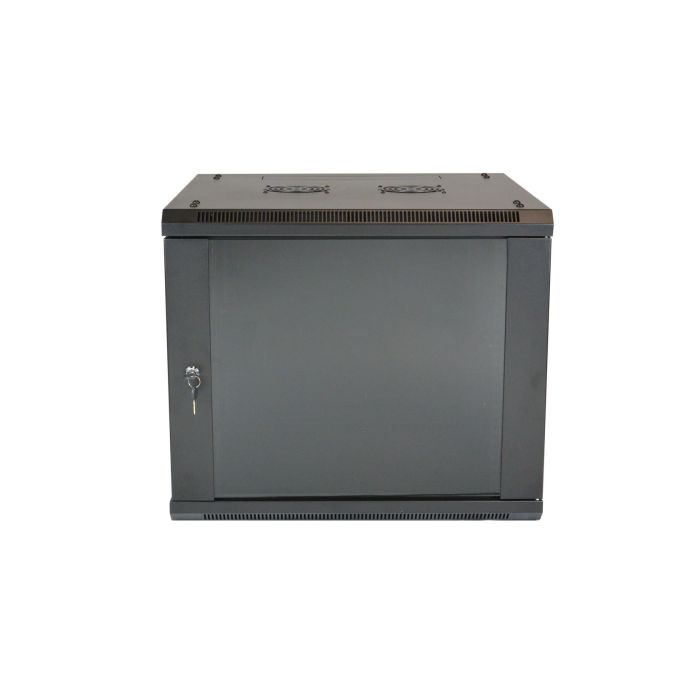

The T-racks WCB9-645 is a 19-inch wall-mounted patch cabinet measuring 9 units high and 450 millimetres deep. The maximum built-in dimension is 400 millimetres deep. The patch cabinet is delivered fully assembled in the colour black (RAL9004).
You can use this patch cabinet in a small system to neatly hide away the equipment. Applications where you can use this patch cabinet for example network, audio, video or security systems. You can here the rack up to 60 pounds load.
The wall-mounted patch cabinets are supplied as standard with a smoked glass front door made from safety glass and is fitted with a lock. Two keys are supplied with the lock as standard. The side panels are removable and can be fitted with optional locks. The top and bottom of the patch cabinet have been provided with provisions for the passage of cabling. The top is also prepared for the placement of fans. The fans are optionally available for this purpose.
The T-racks WCB9-645 is the smallest of the series of wall-mounted 450 mm deep patch cabinets. The patch cabinet has space for 9 units. In the standard configuration it is possible to place equipment with a build-in depth of 350 millimetres. However, if you adjust the 19-inch profile to the extreme position, you can place equipment with a maximum depth of 400 millimetres. For the heavy equipment there is one set of L-rails which you can use for support.
- number of units: 9 HU
- depth: 450 mm
- color: black
- taxable to 60 kg
- complies with ANS/EIARS-310-D
Weight: 24 kg
Dimensions: 45 × 60 × 50 cm
More Information
| Brand | T-racks |
|---|---|
| Ean Code | 7434952886833 |
| Article number | 67791 |
