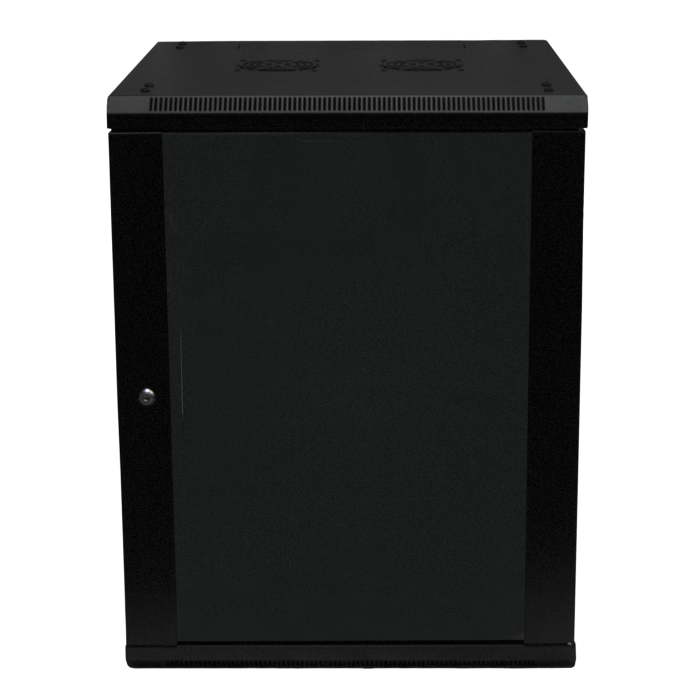

The T-racks WCB15-66 is a 19-inch wall-mounted patch cabinet measuring 15 units in height and 600 millimetres in depth. The maximum built-in dimension is 540 millimetres deep. The patch cabinet is delivered fully assembled in the colour black (RAL9004).
You can use this patch cabinet in a small system to neatly hide away the equipment. Applications where you can use this patch cabinet for example network, audio, video or security systems. You can here the rack up to 60 pounds load.
The wall-mounted patch cabinets are supplied as standard with a smoked glass front door made from safety glass and is fitted with a lock. Two keys are supplied with the lock as standard. The side panels are removable and can be fitted with optional locks. The top and bottom of the patch cabinet have been provided with provisions for the passage of cabling. The top is also prepared for the placement of fans. The fans are optionally available for this purpose.
The T-racks WCB15-66 is the highest model in the series of wall-mounted 600-millimetre deep patch cabinets. The patch cabinet has space for 15 units. In the standard configuration, it is possible to place equipment with a build-in depth of 500 millimetres. However, if you adjust the 19-inch profile to the extreme position, you can place equipment with a maximum depth of 540 millimetres. For the heavy equipment there is one set of L-rails which you can use for support.
- number of units: 15 HU
- depth: 600 mm
- color: black
- loads up to 60kg
- complies with ANS/EIARS-310-D
Weight: 32 kg
Dimensions: 60 × 60 × 76,6 cm
More Information
| Brand | T-racks |
|---|---|
| Ean Code | 7434945483490 |
| Article number | 66246 |
