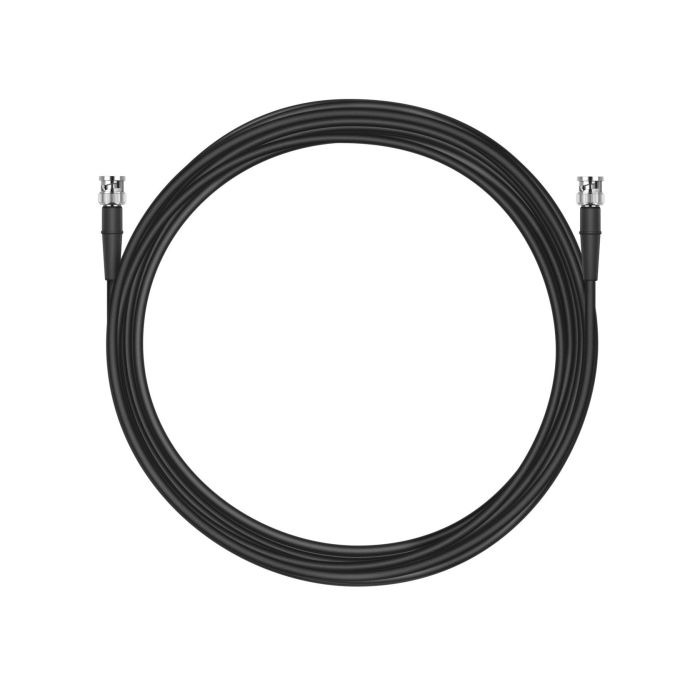

The Sennheiser GZL RG 8x is a coax antenna cable with BNC connectors. The cable has a very low attenuation and is therefore suitable for longer lengths. This cable can be used as a connection cable between your antenna splitter (or transmitter/receiver) and your antennas. The cable has an impedance of 50 Ohm and is therefore very suitable for wireless connections (RF). This cable has a length of 10 mtr.
The cable has a male BNC connector at one end and a male BNC connector at the other end.
Tip! The GZL RG 8x series is suitable for longer cable lengths up to 20 meters, but this cable is a bit stiffer than the GZL RG 58 series.
Therefore, for short lengths we recommend the GZL RG 58 series.
- Sennheiser antenna cable
- BNC to BNC
- coaxial cable
- suitable for use between antenna splitters (transmitters/receivers) and antennas
- maximum attenuation: 16.8 dB/100m at 400 MHz, 25.5 dB/100m at 800 MHz
- Conductor DCR (direct voltage resistance): < 3.2 Ohm/100m
- capacitance: 82 pF/m
- maximum pass frequency: 4000 MHz
- diameter: 6.8 mm
- Sennheiser order no.: 700163
- length: 10 meter
