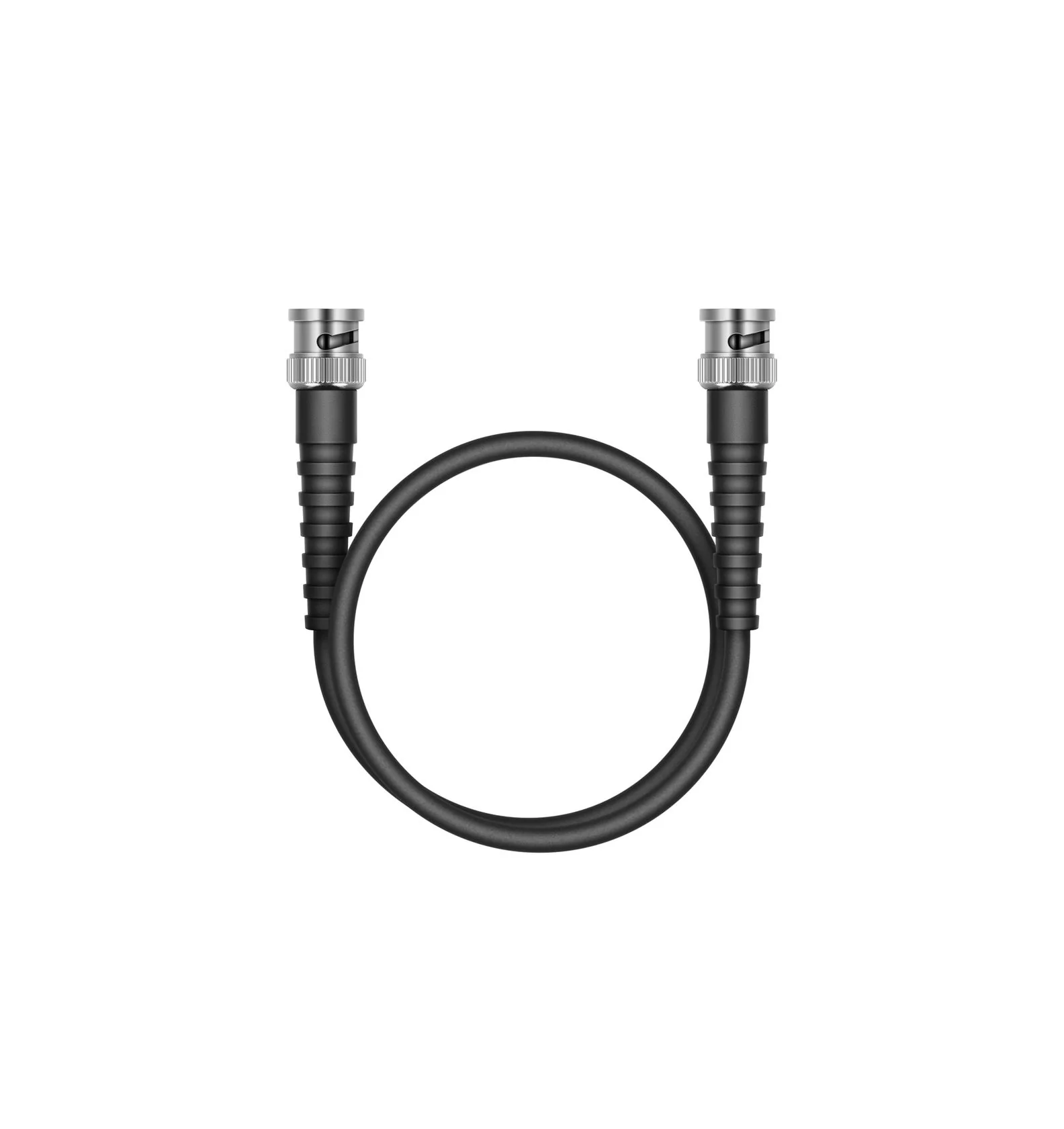

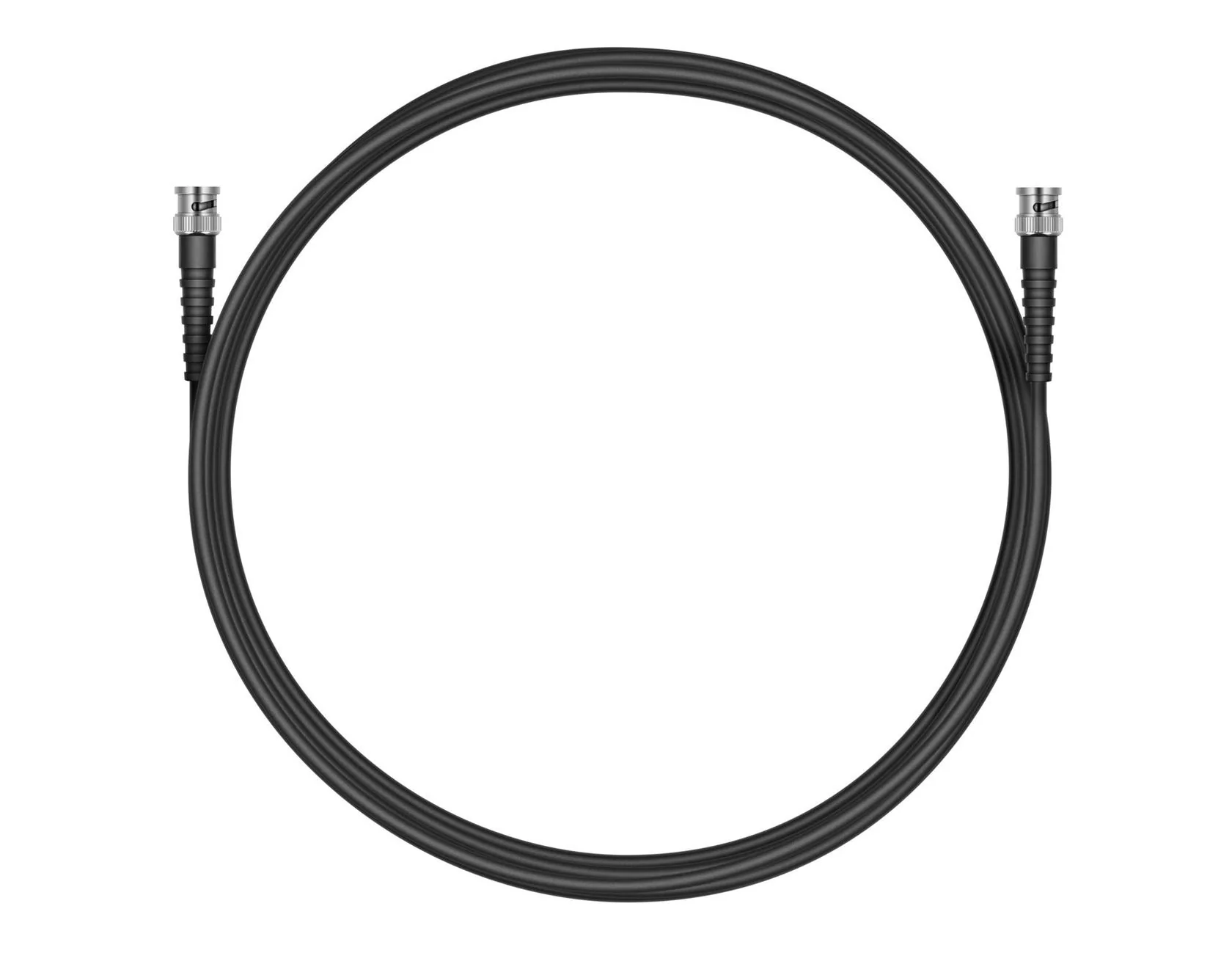

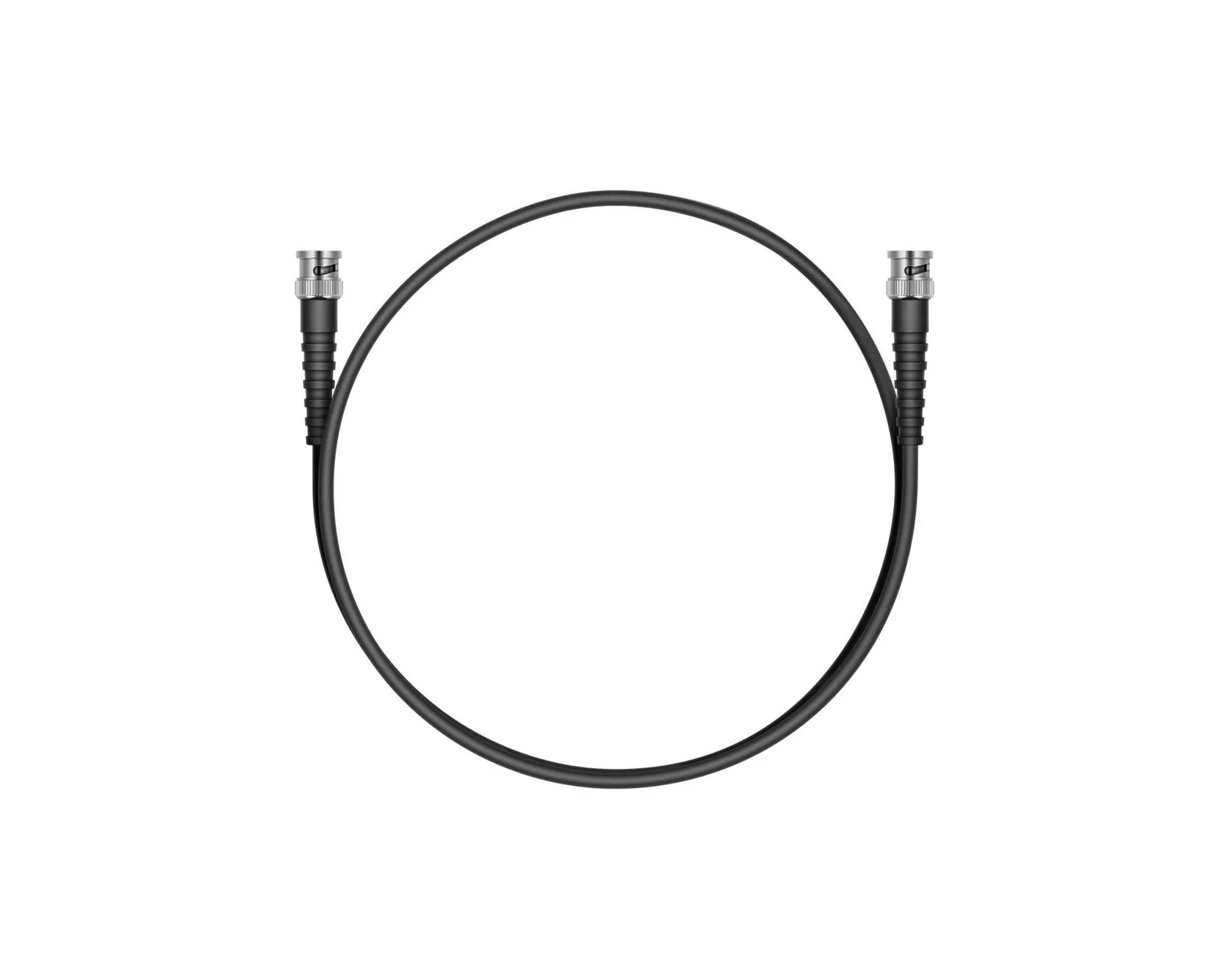

The Sennheiser GZL RG 58 is a coax antenna cable with BNC connectors. You can use this cable as a connection cable between your antenna splitter and transmitter/receivers. And if your antennas are not too far from your transmitter or receiver you can use it to connect your antennas (flags). The cable has an impedance of 50 Ohm and is therefore very suitable for wireless connections (RF). This cable has a length of 10 mtr.
The cable has a male BNC connector at one end and a male BNC connector at the other end.
Tip: The GZL RG 58 series is suitable for cable lengths up to 10 meters. For longer cable lengths we recommend the GZL RG 8X series.
The GZL RG 8X series is somewhat stiffer and therefore we recommend this GZL RG 58 series for short lengths.
- Sennheiser Antenna Cable
- BNC to BNC
- coaxial cable
- suitable for use between transmitters/receivers and antenna splitters
- maximum attenuation: 34.8 dB/100m at 400 MHz, 56.4 dB/100m at 800 MHz
- Conductor DCR (DC resistance): 3.54 Ohm/100m
- capacitance: 101 pF/m
- maximum pass frequency: 1000 MHz
- diameter: 6.15 mm
- Sennheiser order no.: 700162
- length: 10 meter
