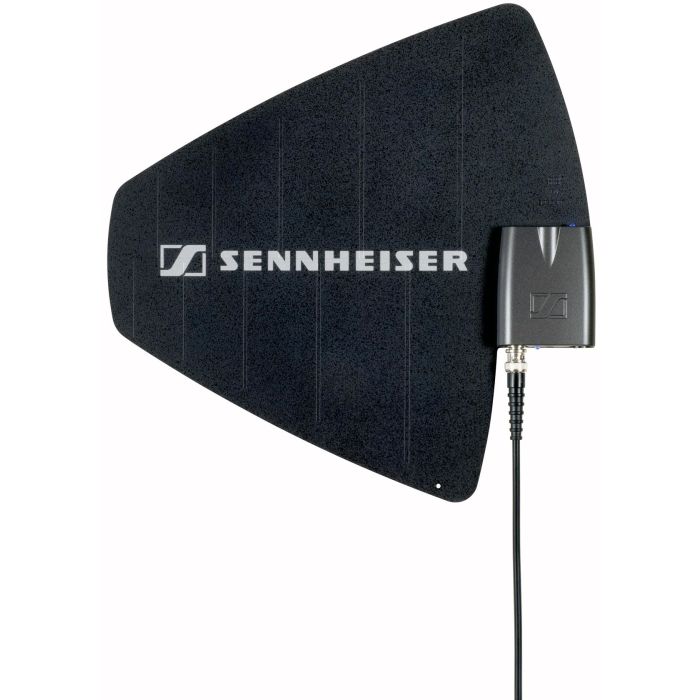

The Sennheiser AD 3700 is a directional, active antenna. The antenna is combined with a signal amplifier and can be connected via regular 50 ohm antenna cables. It is possible to set this amplifier in 4 different modes.
On a receiver you connect two antennas for diversity reception. The correct placement and alignment of an antenna is important. We gladly inform and advise you about the use of the right antenna cables, antennas and antenna placement.
- frequency band: 470 - 866 MHz -
Directional angle: 100° -
Front-to-back ratio ≥ 14 dB -
Amplifier (booster): bypass (-3 dB), adjustable to 5 dB, 10 dB, 15 dB (without DC power supply: -6 dB)
- Impedance: 50 Ω -
Mounting by 3/8" or 5/8" wire -
Sennheiser order no.: 502197
Dimensions: 329 x 322 x 23 mmWeight
: 625 gr.
Note: the AD3700 is only suitable for use with EM 3731/3732, EM 2000/2050 and EM 6000 receivers.
