The Sennheiser AC-41 is an antenna combiner to connect (up to four) stereo transmitters to one antenna. It also provides the transmitters with power via the four supplied BNC cables. That again saves connecting separate cables (and thus setup time). The NT 3-1 power supply is also included.

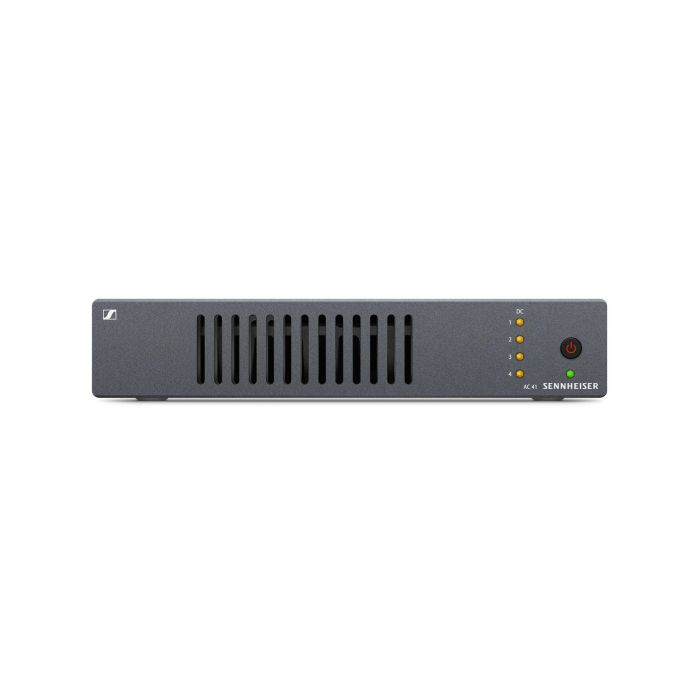

On the front of the combiner are four LED indicators that show the status of the connected transmitters. By the way, the AC 41 can be built into a 19-inch rack or flight case with the GA 3 rackmount kit. This kit is available separately.
- Sennheiser AC-41-EU active antenna combiner
- active antenna combiner for evolution wireless systems
- supplies power to connected transmitters via BNC cables
- connects four IEM inear transmitters to one antenna
- frequency range 470 - 870 MHz
- solid metal housing
- impedance: 50 ohms
- provides 4 stereo transmitters with antenna and power supply
- Sennheiser order no.: 508243
in box: - 1 x AC-41 antenna combiner
- 1 x NT 3-1 power supply
- 4 x BNC cable
Dimensions: 212 x 168 x 43 mm
Weight: 1.47 kg
