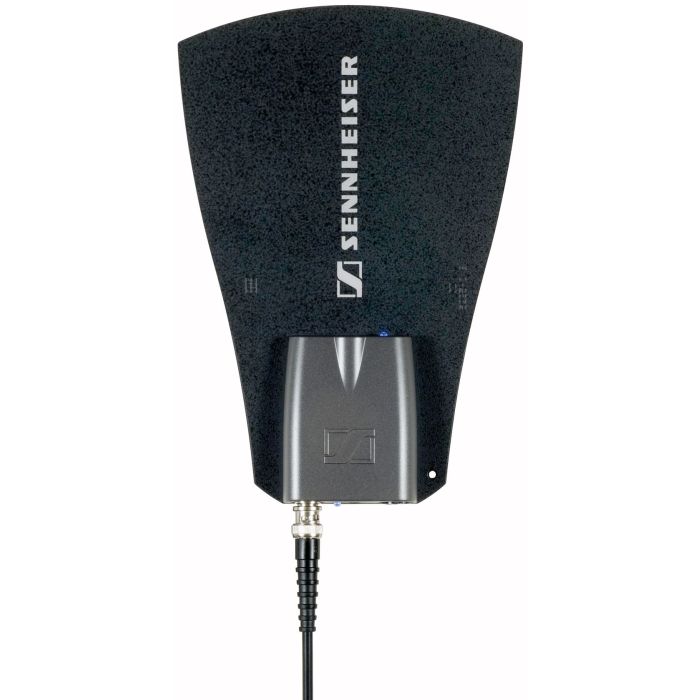

The Sennheiser A 3700 is an omnidirectional, active antenna. The antenna is combined with an AB3700 signal amplifier and can be connected via regular 50 ohm antenna cables. It is possible to set this amplifier in 4 different modes.
You connect two antennas to a receiver for diversity reception. The correct placement and alignment of an antenna is important. We are happy to inform and advise you about the use of the correct antenna cables, antennas and antenna placement.
- Sennheiser A 3700 omnidirectional antenna with booster-
frequency band: 470 - 866 MHz-
omnidirectional-
BNC connector-
amplifier (booster): bypass (-3 dB), adjustable to 5 dB, 10 dB,15 dB (without DC supply: -6 dB)-
power supply: 9 - 15 V ⎓ / 160 - 100 mA, DC supply via antenna cable-
impedance: 50 Ω-
mounting by 3/8" or 5/8" wire-
Sennheiser order no.502195Dimensions
: 165 x 250 x 23 mmWeight
(incl. booster): 390 gr.
Note: the A 3700 is only suitable for use with EM 3731/3732, EM 2000/2050 and EM 6000 receivers.
