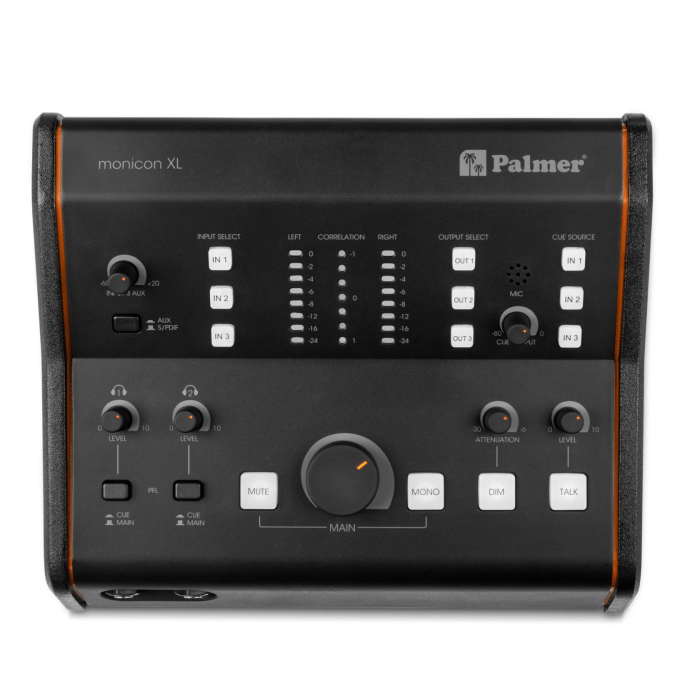

Palmer Monicon XL: The ultimate analog monitor controller for your studio!
Efficient switching between audio sources and monitors is crucial in any professional studio. The Palmer Monicon XL offers full control over three stereo audio sources and three monitor pairs. In addition, this controller features a full-range mono-sum output, ideal for connecting a mono monitor or subwoofer. Uniquely, all outputs are individually volume adjustable, allowing you to perfectly balance your sound.
What really sets the Monicon XL apart is the built-in correlation meter, which allows you to visually monitor phase differences in the stereo signal. This helps detect mono compatibility problems in your mix. Thanks to the all-analog circuitry, you enjoy an interference-free signal with no latency, ensuring realistic and accurate playback on your monitors.
Comprehensive functionality is made complete with two headphone outputs with individual volume controls, a dimmer knob, a main-cue selector, a cue master controller, and a talkback function with its own volume control.
Palmer Monicon XL features:
- analog monitor controller
- three stereo studio monitor outputs
- integrated talkback microphone with volume control and knob
- mute, mono and adjustable dimming function for the three main outputs
- 2 headphone outputs with volume control and Main-Cue switches for headphones
- LED level indicator and correlation meter
- 2 x 6.35 mm TRS jack input (balanced)
- 1x RCA input (balanced)
- 1x SPDIF input
- 1x 3.5 mm TRS jack
- 5x 6.35 TRS jack output (balanced)
- 1x 6.35 TRS jack mono-sum output
- 2x 6.35 TRS jack stereo headphone output
- frequency range: 12 - 90000 Hz
- THD: 0.002%
- SNR: 102 dB
- dynamic range: 115 dB
- CMRR: >55 dB
- other features:
- Audio Dim
- input selector
- mute
- output selector
- PFL source
- talkback + mic
- Cue
- housing material: wood, sheet steel
- dimensions: 21.5 x 25.4 x 8.4 cm.
- weight: 1,5 kg
- Paler article no.: PMONICONXL
