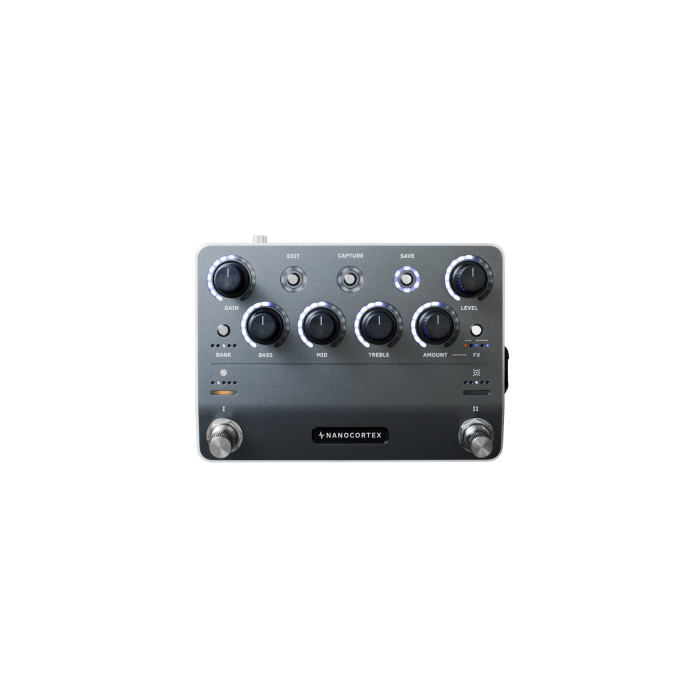

Neural DSP Nano Cortex

floor format FX modeler / profiler
Sale

Neural Captures

IR loader

Create your own captures

Control via Cortex Cloud App

511,00 569,00
In stock

5 years warranty

professional staff

1000m2 music store

free shipping from €75,-

Need help? Our product experts are happy to help you!

Neural DSP's Quad Cortex has dominated the guitar modeler market for a number of years, and with good reason. Unprecedented sound quality, super intuitive interface and the choice of both models and captures of real amps.

The Nano Cortex does all this in a super compact and affordable version. The Nano Cortex maintains a fixed signalchain to provide as much audio quality as possible in a small format. And with all the essentials like :

  • Pitchshift
  • Noisegate
  • Captures (over 25,000 via the Cortex Cloud)
  • Impulse Responses
  • Chorus
  • Analog Delay
  • Reverb

Have more than enough to use the Nano Cortex standalone or integrate it into an existing pedalboard.

In terms of controls and interface, Neural DSP has again excelled wonderfully. To compensate for the lack of a screen, you can control the Nano Cortex's presets directly via the Cortex Cloud App. Build your presets and multiple banks here or get additional Captures from others for even more tone options.


Read more

I/O

Of course, you have all the ins and outs you would need on a Nano Cortex. So we can output stereo, we can interface directly with via the USB output, and there is even an XLR input to make your own Captures with the Cortex Nano.

  • Instrument input: 1/4" TRS-F, 1MΩ impedance, +10dBu max input level.
  • Combo recording input: XLR-F + 1/4" TRS-F, 1MΩ (TS) / 45kΩ (XLR) impedance, +10dBu max input level, +26dB boost gain.
  • Outputs: (2) 1/4" TRS-F, 560Ω impedance, +10dBu (unbalanced) / +16dBu (balanced) max output level.
  • Headphone output: 3.5mm TRS-F, 55mW into 20Ω maximum output power.
  • EXP/MIDI inputs: 1/4" TRS-F (Expression), MIDI TRS Type A.
  • USB audio: USB Audio Class 2.0, 7 channels (4 in / 3 out), 48kHz fixed audio clock.

Audio interface

Via the USB output it is also possible to record audio directly to your PC. Just plug in and you have studio-grade audio to mix into your projects, put under video content or send to other musicians in a remote collaboration. The audio quality runs at 24-bit and 48kHz samplerate.

Cortex Cloud App

Setting up a new preset is truly child's play. You link your Cortex Nano to the app via bluetooth and select the preset you want to customize. Then you choose from one of 5 pre-loaded Captures, you choose one of 5 pre-loaded IRs, and finally your pre and post effects.

Want to replace one of the 5 pre-loaded captures with another amp or cab? No problem! With the push of a button you choose one of dozens of Neural Captures, or dive into the Cloud to use one of the 25,000 captures others have made.


  • Dimensions: 14.4 x 10.3 x 6.2 cm / 5.6 x 4.0 x 2.4"
  • Weight: 620g / 1.36 lbs
  • Power supply: 9-12V DC 600mA (center negative) / USB-C 5V, 1.5A or higher.


Read less

More Information

Brand Neural DSP
Ean Code 0655729138413
Color Grijs
Tap-tempo yes
Stereo input nee
Stereo output yes
Analog no
Type Gitaareffect Multi effect pedaal
Buizen No
Article number 73406
Size (product) 10 x 14 x 6 cm
Size (packaging) 20 x 12 x 28 cm
