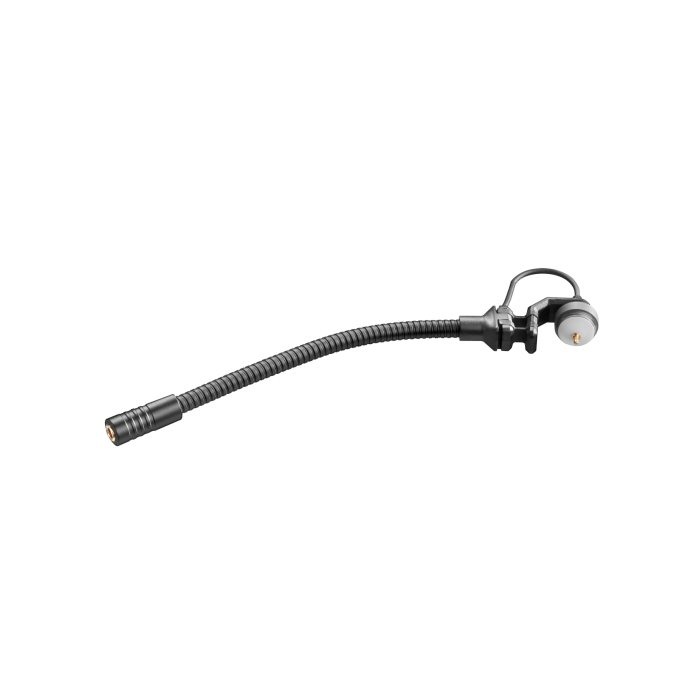

The Neumann SH 100 is a loose gooseneck for the MCM 114 microphone system. The KK 13 or 14 capsule (available separately) is mounted on this gooseneck with a removable screw connection. The built-in elastic suspension bracket is made of advanced plastic for excellent absorption of background noise.
This shorter version of the gooseneck (10 cm.) is useful if you want to be able to position the microphone a little closer to the sound source.
The SH 100 is internally wired with a cable with a proprietary connector at one end for connecting the KK capsule and a connector at the other end for connecting one of the MCM output cables (sold separately). An instrument-specific MCM clip (sold separately) is required to mount the SH 100 on your instrument. The included KC 1 cable bracket can be used to keep the cable neatly away from the instrument while preventing unwanted cable noise.
This gooseneck is 10 cm long and has a screw thread onto which you can screw a separately available KK capsule.
Required instrument-specific mounts/clips
MC 1: Clip to mount the gooseneck on the body of a violin, viola, mandolin, and similar instruments.
MC 2: Clip to mount the gooseneck on the strings of a cello under the bridge.
MC 3: Clip to mount the gooseneck on the strings of a double bass under the bridge.
MC 4: Clip to mount the gooseneck on the rib/body of a double bass or similar instrument.
MC 5: Universal belt clip to mount the gooseneck on an oboe, clarinet, recorder, bassoon, flute or harp.
MC 6: Universal clip to mount the gooseneck on the cup of a trumpet, trombone, saxophone, French horn, or on a percussion instrument or stand.
MC 7: Clip to mount the gooseneck on the rim of a snare, tom, stand tom or timpani.
MC 8: Magnetic clip for mounting the gooseneck to an upright piano or grand piano.
MC 9: Clip for mounting the gooseneck to the body of a guitar, ukulele, dobro, acoustic bass or cello.
Flexible connectivity for wired and wireless applications
Neumann offers four cables to connect the gooseneck's output to either the MCM 100 XLR output stage module or to popular wireless transmitters including Sennheiser, Lectrosonics, Shure, Zaxcom, Wisycom, and others.
AC 31 cable with locking, 3.5mm TRS connector for wireless transmitter and MCM 100 XLR output stage module
AC 32 cable with LEMO 3-pin connector for wireless transmitter
AC 33 cable with Microdot connector for wireless transmitter
AC 34 cable with 4-pin mini-XLR connector for wireless transmitter
- Neumann SH 100 gooseneck for MCM 114 microphone
- connection side 1: KK connector
- connector side 2: MCM connector, for AC cable
- requires MC instrument clip
- including KC 1 cable bracket
- length: 10 cm
- Neumann order no.: 008727
