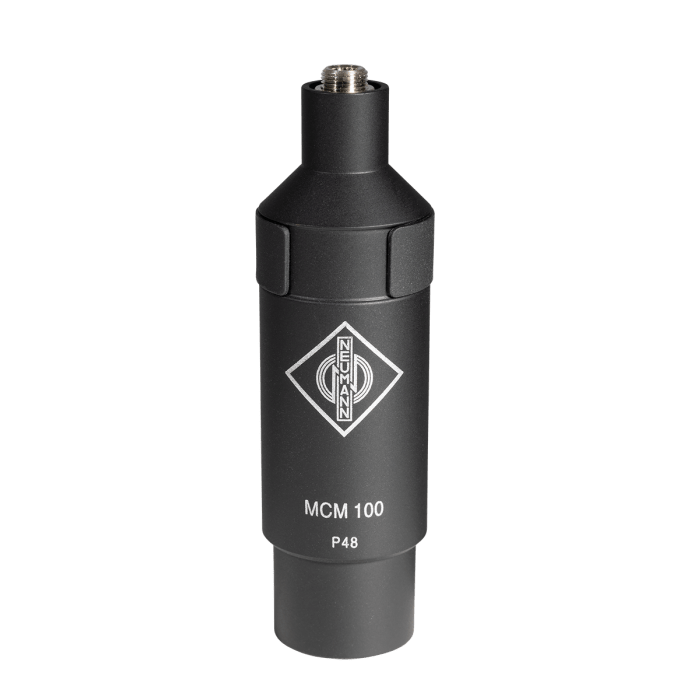

The Neumann MCM 100 is part of the modular Miniature Clip Mic (MCM) system and is an in-line output stage module for the KK 14 capsule. It allows you to run the capsule on +48V phantom power from a traditional mic preamp when you plug the mic into a mixing board via a balanced XLR cable. If you want to connect a Neumann MCM 114 mic to a mixer you will need the MCM 100 XLR output stage.
The MCM 100 features a 3.5mm TRS female input connector and a 3-pin XLR male output connector. The AC 31 cable (sold separately) is required to connect the KK 14 capsule to this module. This adapter converts the 48 Volt phantom power supply of the mixer into a voltage suitable for the microphone.
- Neumann MCM 100
- XLR module
- input: 3.5 mm TRS mini jack
- output: 3-pin XLR male
- required power supply: 48 V phantom power
- dimensions: 22 x 77 mm
- weight: 96 gr.
