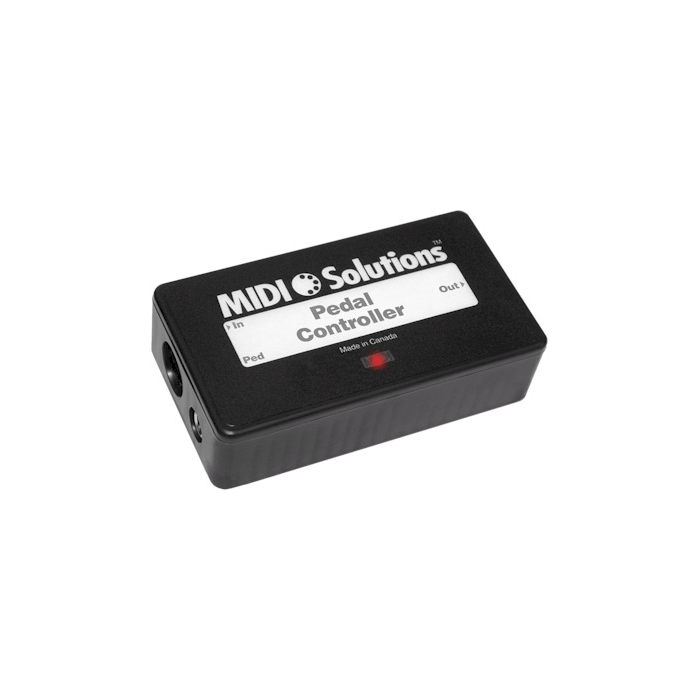

The MIDI Solutions Pedal controller is a handy little box for generating MIDI data based on the position of the pedal. The Pedal Controller accepts an expression pedal (such as the Yamaha FC7 or Roland EV-5 or any potentiometer connected to a 1/4" stereo telephone plug) as input and generates continuous MIDI data based on its position. The Pedal Controller can be inserted inline at any point in the MIDI data stream, allowing continuous MIDI data to be sent to any device in a MIDI setup.
The Pedal Controller's factory settings are to send CC#7 (volume) on MIDI channel 1, so if this is the message to be sent, programming is not necessary - just insert the Pedal Controller into a MIDI setup and it's ready to use. The Pedal Controller can also be programmed to send other types of MIDI messages, for more information read on...[[READ MORE]]
The Pedal Controller can be programmed to send:
- Aftertouch
- Pitch bend
- Control Change
- System Exclusive
The Pedal Controller includes a MIDI Echo parameter that can be turned on/off.
The Pedal Controller accurately tracks the position of the pedal or potentiometer connected to it. Minor fluctuations are eliminated when the pedal is in a stationary position and no extraneous messages are sent. If the pedal is moved slightly, the Pedal Controller sends an update even if the position has changed by only one value. Many control wheels or knobs only update themselves every two or four values, resulting in coarser control and sometimes zipper noise.
Another unique feature of the Pedal Controller is the ability to add a variable amount of curvature to the pedal's response. This allows you to correct pedals with nonlinear response, or add a greater response to one side of the pedal than the other.
The Pedal Controller is programmed by sending MIDI System Exclusive messages (read the Frequently Asked Questions on Programming for more details). This is easily done with the MIDI Solutions Programming Tools software. Once programmed, the settings are retained even after the power is turned off. The Pedal Controller can be reprogrammed with new settings as many times as necessary. The factory settings of the Pedal Controller are to transmit CC #7 (volume) on MIDI channel 1, with the Echo parameter set to ON.
The Pedal Controller operates on MIDI and does not require batteries or power to operate with most MIDI products (for more information, read the Power FAQs). A MIDI indicator LED lights up when power is applied to the product and flashes when MIDI data passes through it.
Weight: 124 gr.
Dimensions: 112 x 62 x 31 mm.
