Compact, powerful and easy to use
A column PA remains the perfect companion for DJs and smaller bands. The LD Systems MAUI series represents this all-in-one concept in every detail, offering an unparalleled PA package in terms of sound, design, technology and operation. Set up, plug in and ready!The MAUI 28 G3 delivers huge, powerful and accurate sound with 1,030 W RMS power (2,060 W peak), suitable for all applications: as a main PA for concerts, as a sound system for mobile DJs or as a public address system at weddings, corporate events and much more.
Speaker, speakers and more speakers!

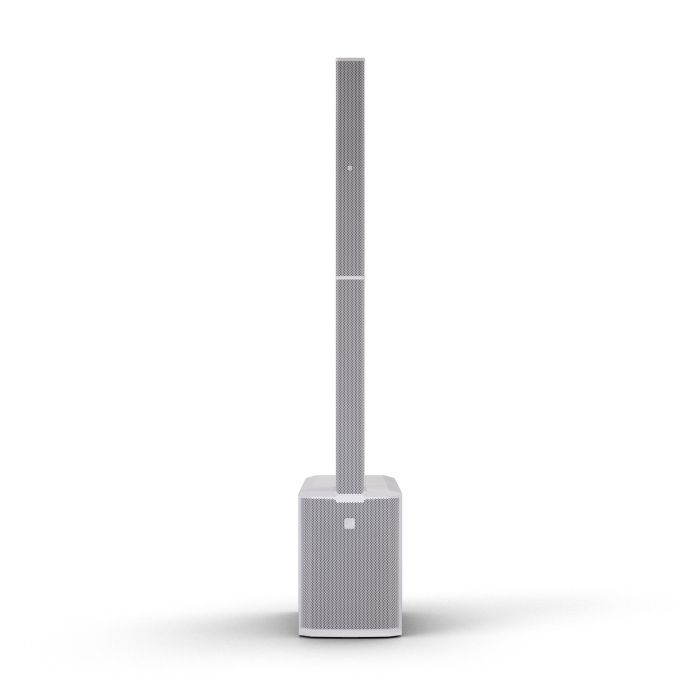

With its slim and elegant design, the MAUI 28 G3 looks very attractive. The two aluminum column elements placed on top of the subwoofer, adding to the seamless visual impression. The columns are equipped with 12 x 3.5'' midrange drivers and 2 x 1'' tweeters, which combined with the innovative phase plug design ensure even sound distribution with constant horizontal dispersion. Moreover, the BEM-optimized waveguide for the tweeters carries the high frequencies even to the very back of the audience.Read more
Thought about everything
LD Systems' engineers also put a lot of thought into the crossover filter between the midrange and tweeter speakers. The goal was to reduce harmonic distortion and interference to make the sound even more transparent, lively and powerful. The result speaks for itself: highly accurate reproduction of vocals and instruments over the entire 120° x 30° dispersion field. The columns of the MAUI 28 G3 are designed as cardioid speakers. This ensures controlled bass at the front and up to 18 dB of attenuation at the rear, resulting in a clean stage sound. This also reduces the chance of that irritating peak over the microphones because you just don't have the space to put the speakers further away from you.Its all about the bass
Equipped with a single 12'' woofer and four bass reflex ports, the MAUI 28 G3 subwoofer delivers a clear, tight and punchy low to 37 Hz. By using a second subwoofer, bass response can be increased by up to 6 dB, and it can also be driven in a cardioid configuration at the touch of a button (cardioid preset). Moreover, the subwoofer's ultra-durable polyurea coating withstands the toughest road conditions.Pro sound, but easy
The MAUI 28 G3 is a real sound machine, but with its advanced features it also convinces in the everyday life of DJs, musicians and technicians. Thanks to Bluetooth 5.0 and AAC encoding, the column PA becomes even more versatile. Transportation is as easy as ever, while the improved, hidden multi-pin connections between the elements provide more stability during assembly. There is nothing that can knock the MAUI off its feet so easily....Specifications:
General
- Product Type: PA Complete Systems
- Type: Active
- Color: White
- Max. SPL (Peak): 127 dB
- Frequency Range (-10dB) 37 Hz - 20000 Hz
- Dispersion (H x V): 120° x 30 °
- Overall height: 2052 mm
- Weight: 35.4 kg
Features:
- Bluetooth Audio Streaming, Cardioid column, DSP-based signal processing, Excellent sound dispersion, Mono / Stereo application
Subwoofer:
- Subwoofer: Dimensions woofer 12 "
- Woofer dimensions (mm): 305 mm
- Woofer magnet: Ferrite
- Woofer brand: Custom-made
- Woofer voice coil: 3 "
- Woofer voice coil (mm): 76.2 mm
- Cabinet construction: Bass Reflex
- Housing material: 15 mm birch plywood
- Enclosure surface: Polyurea
- Subwoofer dimensions (W x H x D): 370 x 527 x 472 mm
- Subwoofer weight: 22.8 kg
Mid/High System
- Midrange dimensions: 12 x 3.5 "
- Midrange dimensions (mm): 12 x 89 mm
- Midrange Magnet: Ferrite
- Midrange brand: Custom-made
- Midrange voice coil: 0.75 "
- Midrange voice coil: 19 mm
- Tweeter size: 2 x 1 "
- Tweeter size (mm): 2 x 25.4 mm
- Tweeter Magnet: Neodymium
- Tweeter brand: Custom made
- Tweeter voice coil: 1"
- Tweeter voice coil (mm): 25.4 mm
Amplifier: Class D
- System Power (RMS): 1030 W
- System Power (Peak): 2060 W
- Protective circuitry: DC protection, multi-band limiter, short circuit, thermal protection
- Cooling: Convection
- Controls: Bluetooth HOLD TO LINK button, Cardioid On/Off, Main Level, Power On/Off, Sub Level
- Indicators: Bluetooth, Cardioid On/Off, Follow mode, Limit, Power, Protect (protection circuitry enabled), Signal,
- Subwoofer mode
- Power connection: IEC power cable (included)
- Operating voltage: 100 V AC - 120 V AC, 50 - 60 Hz, 220 V AC - 240 V AC, 50-60 Hz
Inputs/outputs
- Line inputs: 2
- Line inputs; Combo XLR / TRS
- Line outputs: 1 x Sub OUT, 2 x THRU
- Line Outputs: XLR male
