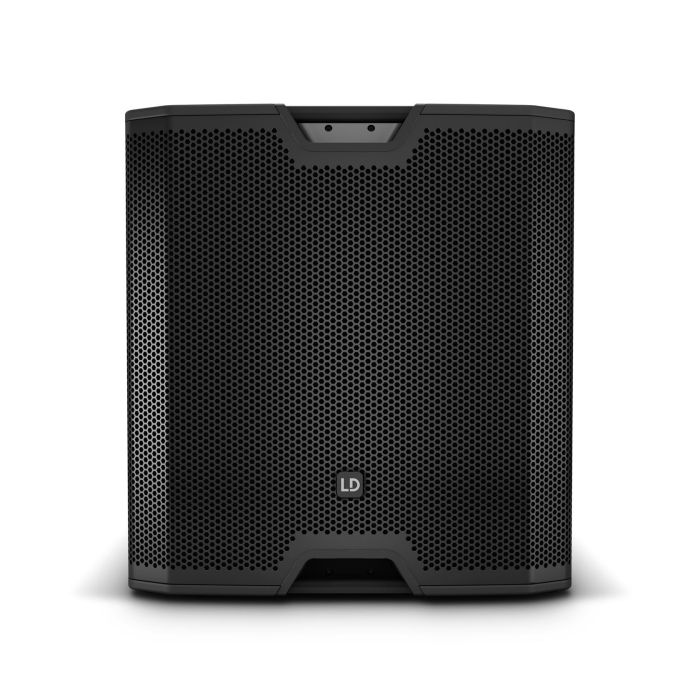

The LD Systems ICOA SUB 18 A is an 18-inch active subwoofer. The music will really groove when you feel the bass in your body. The ICOA SUB can deliver as much bass as you want - to get people rocking and luring them to the dance floor. It can even give a multimedia presentation that special oomph needed to reach the audience.
The ICOA SUB produces serious bass and gives you a wider soundstage and therefore a clearer sound. This is because your subwoofer relieves the top cabinet, whose woofers are now less stressed by high-energy bass impulses, resulting in less intermodulation distortion. Even at higher volumes, the sound is not muffled. Voices and instruments remain crystal clear.
Thanks to the powerful Class D amplifier with 600 watts RMS (2400 watts peak), you have serious power at your disposal. With presets from the integrated DynX DSP - which offers crossover frequencies of 80, 100 and 120 Hz - you can perfectly tune the ICOA SUB to your system. Signal polarity can also be reversed, and the SUB offers a delay preset for distances up to 10 meters.
When your needs begin to expand as the rooms get bigger, the system can grow with you. Just add more ICOA SUBs, which can operate in parallel, to give you more and more power. You can also take advantage of the cardioid preset. Just place the additional subwoofers next to your ICOA SUB facing backwards and activate the cardioid-preset to get a quieter and controlled low-end at the rear while still retaining the punch at the front.
The rugged enclosures made of 18 mm laminated wood can be stacked, while the M20 threaded top allows you to mount a top cabinet using a spacer pole. Transportation is simplified by mounting casters on the back (optional). Corner guards guard the edges during setup. To prevent the ICOA SUB from slipping out of your hands, the four aluminum handles are covered with rubber.
Whether you are a DJ, singer-songwriter, rock or party band, the ICOA SUB produces the perfect bass to complement your live music. Lectures and multimedia presentations also benefit from its clarity and powerful presence, giving you the right support to amplify emotions in your audience.
Please note that some pictures show accessories that do not come standard with the product, these are purely for illustration purposes. Only the LD Systems ICOA SUB 18 A subwoofer is included.
- 18 inch subwoofer for powerful low to 36 Hz
- 133 dB max SPL and 2400 watts peak power through highly efficient digital class D power amplifier
- optimized bass reflex ports
- DynX DSP with four application presets (three crossover frequencies, cardioid mode)
- switchable signal polarity and adjustable delay line for up to 10 meters
- 2x XLR/TRS "combo jack" inputs and 2 XLR outputs
- 18 mm solid plywood housing and heavy-duty grill
- 4 aluminum handles with ergonomic rubber surface
- safely stackable with four stacking grooves
- M20 thread for intermediate pole
- frequency response (-10 dB): 29 Hz - 80/100/120 Hz (depending on preset)
- max. SPL: 133 dB
- DSP protection: excursion limiter, overvoltage, overcurrent, peak limiter, RMS limiter, thermal overload
- material: 18 mm plywood
- power consumption (max.): 675 W
- dimensions (WxDxH): 62.6 x 67.2 x 63.7 cm
- weight: 44.3 kg
