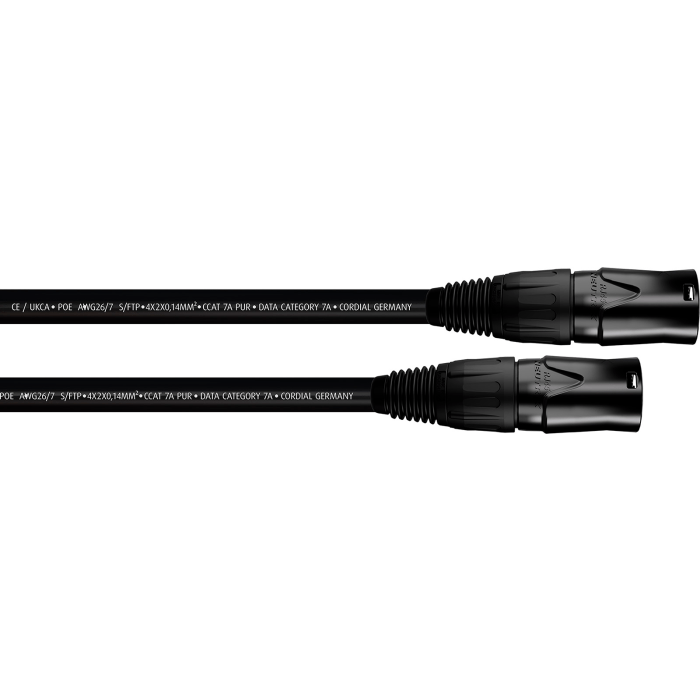

The Cordial CSE 15 NN 7A PUR is a network data cable with etherCON connectors. Length of the cable is 15 meters. The Hirose RJ-45 TM31 connectors are housed in a protective Neutrik metal housing NE8MX-B-1 (etherCON). The CSE 5 NN 7A PUR is particularly suitable for the transmission of very high data rates (CAT 7A). The cable is equipped with transparent shrink sleeves for easy labeling.
Thanks to the double S/FTP shielding, it can transmit CAT 7A data-class signals with an impressive bandwidth of 1000 MHz (1 GHz, Gigabit Ethernet).
The cable is ruggedized and suitable for live-sound "on the road" applications. The cable is somewhat stiff because of the PUR material of the jacket.
In addition, it supports Power over Ethernet (PoE++) (which complies with the IEEE 802.3af-2003 standard) with a power rating of 15.4 watts, significantly expanding its range of applications.
- Cordial type network cable: CCAT 7A PUR
- length: 15 meters
- professional look due to black cable and black connectors
- S/FTP shielding
- diameter 6,4 mm
- conductor surface: 0.14 mm²
- AWG 26/7
- PoE (15.4W) according to IEEE 802.3af-2003, max. channel PoE (15.4W) 70m
- conductor composition: 7 x 0.14 mm²
- conductor resistance 140 Ohm/km
- capacitance: < 44 pF/km
- weight bulk cable approx. 46kg/km
- Cordial order no.: 15594
