The Cordial CPI 3 PR is a professional instrument cable, equipped with solid, black Neutrik NP2X jack connectors for a perfect signal transfer without signal loss.

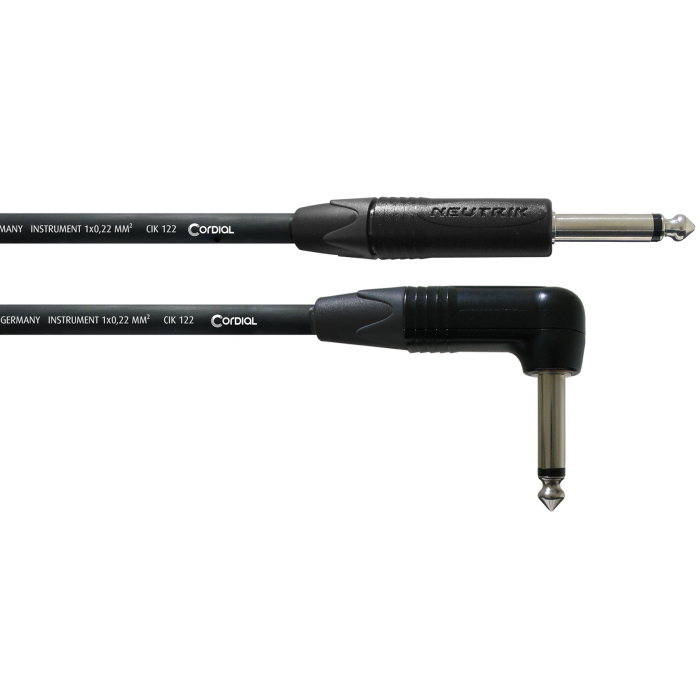

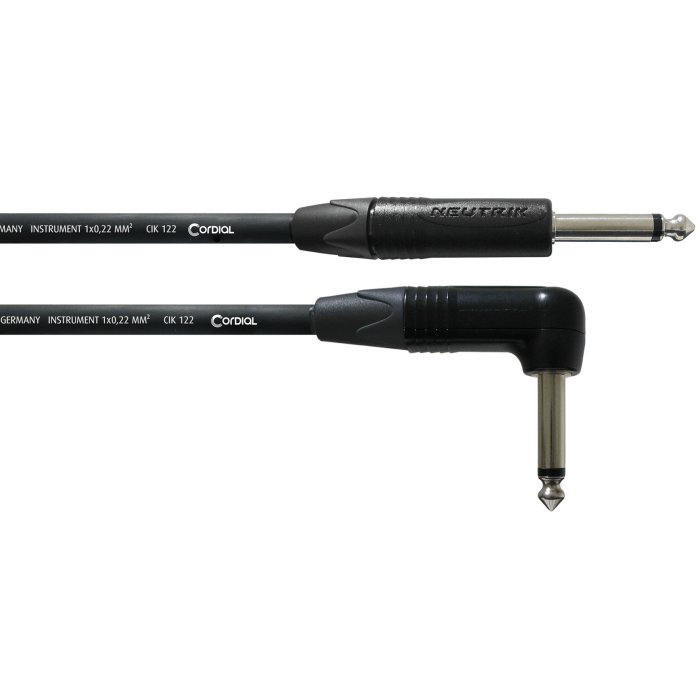

This PR version has one straight jack and one angled jack. Ideal to plug in the right-angle jack at the side of your guitar; the cable can easily be tucked behind your guitar strap, making sure it stays in place. And it's not in the way! If you're looking for a cable with two straight jacks, take its brother the CPI PP version.
This cable has good electrical properties for a perfect signal transfer between your instrument and amplifier. Ideal for the studio or stage. Perfect for (bass)guitar and keyboard instruments.
Specifications:
- length 3 meter
- TS jack straight - TS jack squared
- diameter cable: 6.1 mm
- thickness: 0.22 mm²
- double shielding (spiral wound copper wire screen + conductive plastic)
- AWG (American Wire Gauge**): AWG 24
- Resistance (Conductor resistance): 85 Ohm/km
- Capacity cond.: 130 pF/m
**AWG means American Wire Gauge and is an American standard that specifies the cross section of a round wire by a numerical code. Important to remember is that the size of the wire is measured without insulation. The higher the number, the smaller the diameter and the thinner the wire. Thicker wire carries more current because there is less electrical resistance over a given length. Thicker wire is therefore better for longer distances.
**TS jacket means Tip Sleeve jacket. Also sometimes called 'mono' jacket.
More Information
| Brand | Cordial |
|---|---|
| Ean Code | 4250197613224 |
| Cable length | 300 tot 399 cm |
| Balanced / unbalanced | ongebalanceerd |
| Straight or angled | recht - haaks |
| Type of connector | jack 6.3 mm TS |
| Eerste aansluiting | Jack (6.3mm) |
| Tweede aansluiting | Jack (6.3mm) |
| Article number | 55671 |
