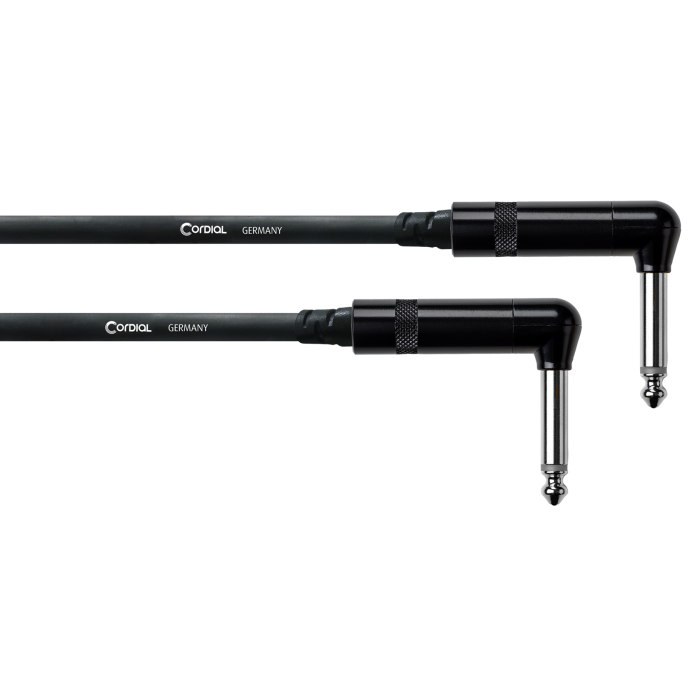

The Cordial CFI 0.15 RR is a sturdy, short instrument cable with two right-angle jack connectors. Also called a patch cable. The plugs are from Rean (by Neutrik) and are very strong! The Cordial essentials cable 5 is a low-loss signal cable with excellent signal transmission. The patch cable has a length of 15 cm
This cable has good electrical properties for reliable signal transfer without loss. Ideal for in between your effects pedals on your pedalboard!
Specifications:
- length: 0,15 mtr.
- TS jack squared - TS jack squared
- diameter cable: 5.9 mm
- AWG (American Wire Gauge**): AWG 24
- Resistance (Conductor resistance): 80 Ohm/km
- Capacity cond.-cond: 140 pF/m
**AWG means American Wire Gauge and is an American standard that specifies the cross section of a round wire by a numerical code. Important to remember is that the size of the wire is measured without insulation. The higher the number, the smaller the diameter and the thinner the wire. Thicker wire carries more current because there is less electrical resistance over a given length. Thicker wire is therefore better for longer distances.
**TS jacket means Tip Sleeve jacket. Also sometimes called 'mono' jacket.
More Information
| Brand | Cordial |
|---|---|
| Ean Code | 4250197608633 |
| Cable length | 0 tot 99 cm |
| Balanced / unbalanced | ongebalanceerd |
| Straight or angled | haaks - haaks |
| Type of connector | jack 6.3 mm TS |
| Eerste aansluiting | Jack (6.3mm) |
| Tweede aansluiting | Jack (6.3mm) |
| Article number | 65271 |
