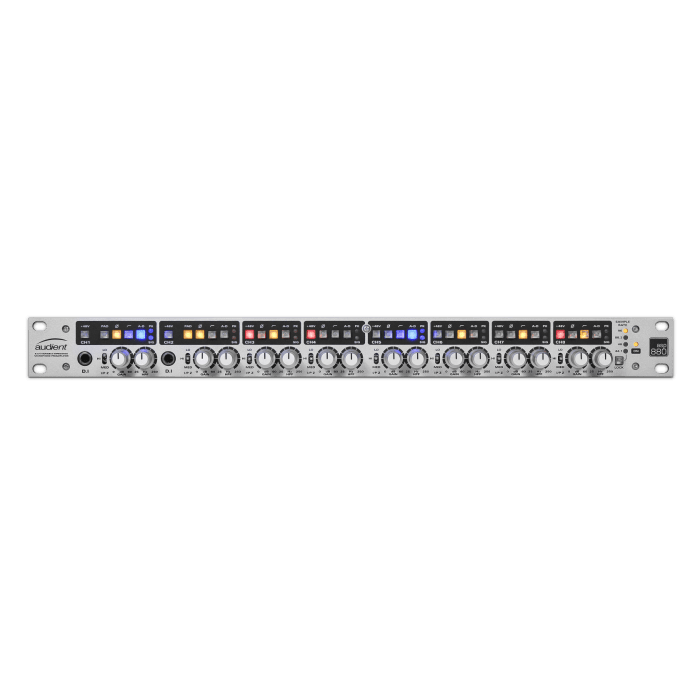

The Audient ASP 880 is truly a powerhouse extension for any studio. Line out or 8 channels via ADAT you can add 8 super powerful and crisp pre-amps to your studio setup with ease. Unique to the ASP 880 is the impedance switch per channel. So for each microphone you can determine which impedance the pre-amp carries. So you can match the impedance with those nice ribbon mics, or just see how a mic sounds when we use an "incorrect" impedance. This gives you an extraordinary amount of tonal variation.
In addition, another unique feature of the ASP 880 is the insert function. Via D-sub connectors you can insert your favorite outboard gear per channel. A truly professional piece of gear.
- 8 x Audient Mic Pres
- 8 x ADC line inputs / insert points
- 2 x JFET Instrument inputs
- Digital outputs ADAT, AES + S/PDIF
Audient Console Mic Pres
Tackle any project with the renowned Audient Console Mic Preamp, the same discrete circuit design found in our acclaimed recording console, the ASP8024-HE. Designed to deliver ultra-low noise and low distortion with a touch of classic analog warmth. The ASP880's eight Audient Console mic pre's give you the professional sound you deserve.
The Audient mic preamp is a completely discreet design with high-quality op amp that delivers a clean, accurate and detailed translation of your source.
Now that's quiet
With a noise floor 30,000 times quieter than the signal level, your recordings are captured with stunning clarity.
- Amplification range of 60 dB - Clean, quiet and powerful
- Phantom Power - Give your microphones the power they need
- -10dB Pad - Keep headroom at loud sources
- Polarity inversion - Make sure everything is in phase
Variable impedance and HPF
Variable Impedance - Variable impedance lets you pre tune the impedance of the mic to your favorite ribbon mic. pre tune the impedance of the mic to your favorite ribbon mic, so you can get the punch and frequency response of the mic the mic was born with. It also works on your other mics, just more subtle. Variable high-pass filters - Take control of your signal with the variable HPF. Remove unwanted low frequencies, prevent proximity effects and boost your low end with a range of 25Hz to 250Hz. The result is a clean, recording-ready signal.
Specifications:
- Audient ASP880 microphone preamplifier
- 8-channel microphone preamplifier
- maximum input level: +21.5 dBu
- THD: better than 0.007% at 1 kHz
- EIN: better than -127.5 dB at 60 dB (150 Ohm)
- frequency response: -0.3 dB at 10 Hz to -3 dB at 300 kHz
- 60 dB gain
- smart and compact design
knobs:
- 48V: phantom power supply (on/off) with soft start
- INST/DI: channel 1 and 2 only. Selects jack instrument with input impedance > 1 MOhm
- 20 dB: 20 dB pad (channels 1 and 2 only)
- line
- polarity
- filter
- PK
- SIG
- I/P Z
- gain
- sample rate: 44.1 / 48 / 88.2 / 96 kHz
- dither: 16 / 20 / 24 bit
- microphone input: XLR electrically balanced
- line input: electrically balanced Combo
- INST/DI input: unbalanced jack
- line output: electrically balanced Combo
- digital output: optional 48/96 kHz AES, S/PDIF and 48 kHz ADAT
- external Word Clock: BNC
- dimensions: 480 x 278 x 44 mm
- weight: 4.5 kg
- power consumption: 40 watts
