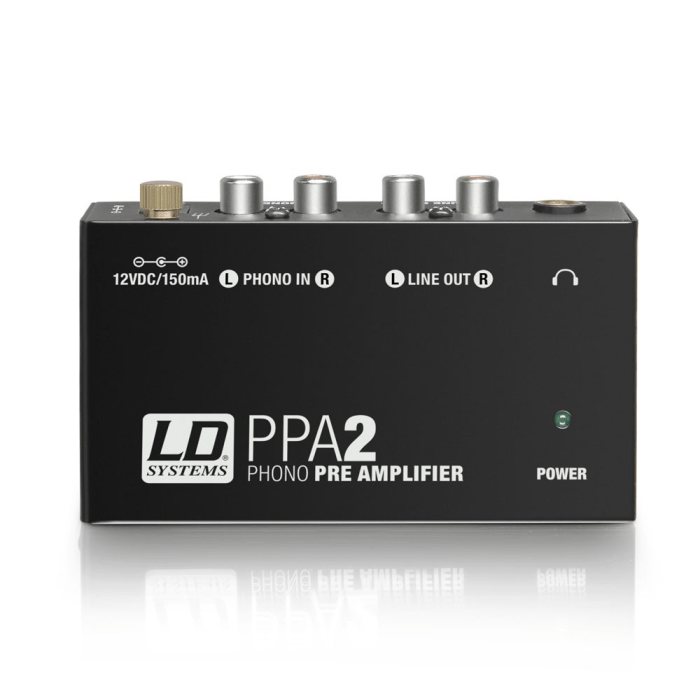

The LD Systems PPA 2 is a very compact analog phono preamplifier that equalizes the extremely low output signal of conventional turntables to RIAA standards. It allows you to connect devices without phono inputs, such as mixers, PA amplifiers or sound cards.
The phono inputs are designed as RCA jacks, as are the line outputs; the PPA 2 also has a screw terminal for the turntable's grounding conductor and a 6.3 mm stereo jack for connecting a headset. The preamp's THD factor is less than 0.05% and channel separation is -75 dB.
The LD Systems PPA 2 uses a 12 V AC adapter; a bright LED indicates the power supply on the top of the sturdy metal chassis.
- Ultra-compact phono preamplifier and equalizer
- Proper RIAA equalization
- RCA inputs and outputs
- 6.3 mm stereo headphone output
- Sturdy metal housing
- 12 V AC/DC adapter included
- Frequency response: RIAA curve Hz
Signal-to-noise ratio: 70 dB - Total harmonic distortion (THD): <0.05%
- Crosstalk: -75 dB
- Max input level: -23.5 dBV
- Max. output level: +10 dBV
- Input impedance (kOhm): 47 kOhm
- Output impedance: 50 ohms
- Indicators: power supply LED
- Inputs: 1 x Phono Stereo
- Input connections: 2 x RCA, Earth connection
- Line outputs: Headphones, Line Stereo
- Line output connectors: 2 x RCA, 6.3 mm TRS
- Power supply: External power supply
- Supply voltage: 12 V DC
- Max. Current: 0.15
- Width: 104 mm
- Height: 36 mm
- Depth: 67 mm
- Weight: 0.28 kg
