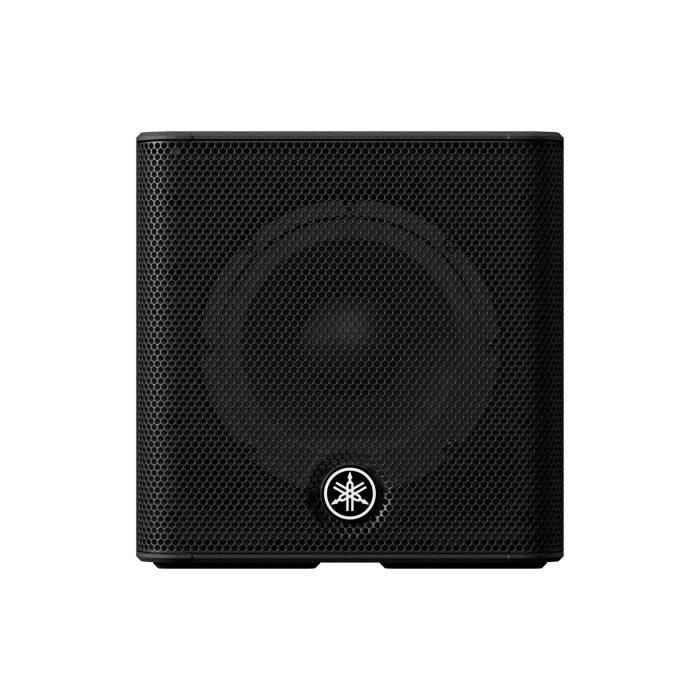

The Yamaha Stagepas 200 is a compact active speaker with built-in, 5-channel digital mixer. This is the battery-free version.
The speakers are driven by a class-D bi-amp amplifier with a maximum output of 180 watts. An 8-inch woofer and a 1.4-inch tweeter provide a maximum sound pressure level of 125 dB. Thus, the Stagepas 200 is ideally suited for musicians, conferences, entertainers, live music or similar applications. With its very compact dimensions of only 30 cm, the speaker is easy to transport. The integrated handle makes it easy to carry it around.
The integrated 5-channel digital mixer has several connection options with XLR/jack combo inputs, so the sound for each channel can be adjusted quickly and easily directly on the device. At the same time, each channel offers an integrated effects section with reverb, chorus and delay, as well as Yamaha's clever 1-button EQ/preset solution that lets you adjust the sound with just one knob. You can store these settings in different "scenes" so you can quickly recall the perfect settings for any situation. Finally, the Stagepas 200 features a handy Priority Ducker that can mute background music when speaking through a microphone, and a feedback suppressor is included.
Features:
- Portable PA system for mobile applications
- 180 watt class-D amplifier
- 8 inch woofer and 1.4 inch tweeter
- Max. SPL of 125 dB ensures high volume without distortion
- Integrated 5-channel digital mixer
- DSP with reverb, delay, chorus and EQ
- Bluetooth audio streaming
- Stagepas Controller Remote app for iOS and Android for easy control from a smartphone or tablet
- Can be set to a tilt angle of 30 and 60 degrees
- Can be battery-powered, operational for up to 10 hours (optional battery required) - for a set see Stagepass 200BTR
- Handle for easy transport
In addition to controls directly on the device, Yamaha's iOS/Android app STAGEPAS Controller is also available for free download from the app stores, allowing all settings to be easily made on a smartphone or tablet and also saved as presets. The system also supports Bluetooth streaming with the current 5.0 standard.
The included rubber feet further increase the system's flexibility by allowing it to be placed at 30° or 60° angles. Mounting on a tripod is also possible due to the integrated 35mm speaker mounting flange.
Optionally, the Stagepas 200 can be expanded with a rechargeable battery that allows up to 10 hours of playback. Want the Stagepas with battery immediately? Then take a look at the Stagepas 200 BTR set.
Specifications:
- 2-way, active 8-inch speaker + built-in mixer
- Frequency range (-10 dB): 60 Hz - 20 kHz
- 90° x 90° dispersion
- Crossover: 2.0 kHz, 24 dB/Oct slope
- 125 dB max SPL
- Speaker:
- LF driver: 8 inch, 2.0 inch voice coil
- HF driver: 1 inch throat compression driver, 1.4 inch voice coil
- ferrite magnet
- solid ABS housing
- 30° or 60° monitor angle
- steel speaker grill
- handle: 1x top - Mixer:
- 5-channel
- analog inputs: mono mic/line x3, stereo line x1
- Bluetooth audio: A2DP (SBC, AAC), Ver 5.0, Class 1
- Class-D amplifier
- power: dynamic: 180 W, RMS: 100 W - Cooling method: convection (passive, so no fan)
- AD/DA: 24 bit, 48 kHz sampling
- Dimensions: 30.75 x 30.1 x 30 cm
- Weight: only 12 kg.
