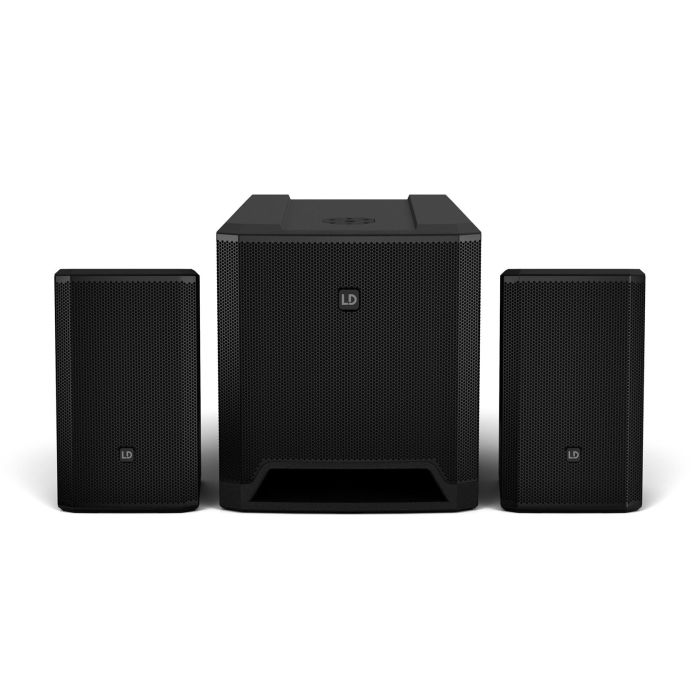

The LD Systems Dave 12 G4X is a compact, active speaker system which consists of a 12-inch subwoofer and two 6.5-inch top cabinets. An ideal set for e.g. background music, amplification of your keyboard or as a small vocal system.
So whether you're a DJ, a live combo, a solo entertainer or at your next party,this all-round PA system is ideal for everyday live performances that delivers professional sound. The speaker system has a wide range of connections and accessory options for quick and flexible on-site setup, and maximum reliability.
This compact rig not only offers a new, modern design with numerous optimizations in operation, it also offers an integrated 6-channel mixer with various input options. This allows you to create a wide variety of setups and combinations of instruments, vocals and audio sources - both wired and wireless - thanks to integrated Bluetooth for easy streaming via e.g. a smartphone or tablet.
The first two channels of the mixer are designed as "channel strips. So here you can connect a microphone, a high-impedance instrument (such as a guitar and/or bass) or line-level sources. A 2-band EQ for bass and treble and an adjustable reverb with three presets (small, large, plate) are available to further shape the sound. Channels 3 and 4 are designed as stereo line inputs and are suitable for keyboards, synthesizers, drum machines or small electronic drum kits.
The DAVE 12 G4X becomes even more versatile when you use the digital SPDIF stereo input or the Bluetooth connection to expand your setup with a media player, computer or smartphone, allowing you to play and control e.g. backing tracks, sound effects or music during your break. The inputs (channels 5 and 6) can also be used for a karaoke system, or simply to connect a TV for an impressive sound experience.
The DAVE 12 G4X has been completely redesigned and developed. This benefits not only instruments and music, but also speech intelligibility when the PA is used for speech amplification. The acoustic concepts include new compression drivers for homogeneous and focused dispersion, as well as FIR filters and advanced DSP technology for transparent, colorless sound that takes the DAVE series to a whole new level. The subwoofer, for example, features a larger voice coil and an optimized bass reflex system.
Specifications:
- power: RMS: 730 W, peak: 1460 W
- max SPL (average): 120 dB
- max SPL (peak): 127 dB
- frequency response: 37 Hz - 20 kHz
- crossover frequency: 105 Hz
- dispersion: 90° x 50°
- weight: 43.7 kg
subwoofer:
- 12-inch low/mid driver
- ferrite magnet
- 2.5 inch voice coil
- bass reflex speaker cabinet
- 6-channel mixer
- 3 reverb presets
- Bluetooth
- intermediate pole mount: M20
- presets: Mono/Stereo
- SPDIF
- 2 carry handles
- dimensions (WxDxH): 45 x 51 x 50.5 cm
- weight: 27.1 kg
top cabinet:
- 6.5 inch driver
- 1.5 inch driver voice coil
- ferrite driver magnet
- 0.5 inch tweeter
- 1 inch tweeter voice coil
- neodymium
- speaker stand flange
- dimensions (WxDxH): 25.2 x 25 x 43.5 cm
- weight: 8.3 kg
amplifier:
- class D, RMS output: 370 W
- 2x 180 W amplifier output Mid/Hi (RMS)
- passive cooling
- Limit, Power, Protect, Signal LED indicators
- 300W power consumption
- inputs: 2x switchable XLR/TRS Combi (Mic, Line, Hi-Z), 2x Line (XLR, RCA), 2x digital (SPDIF, Bluetooth)
