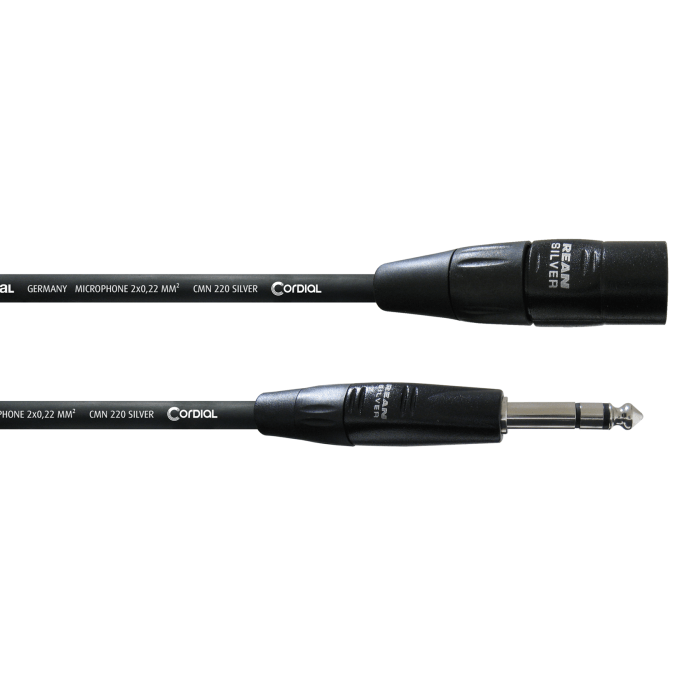

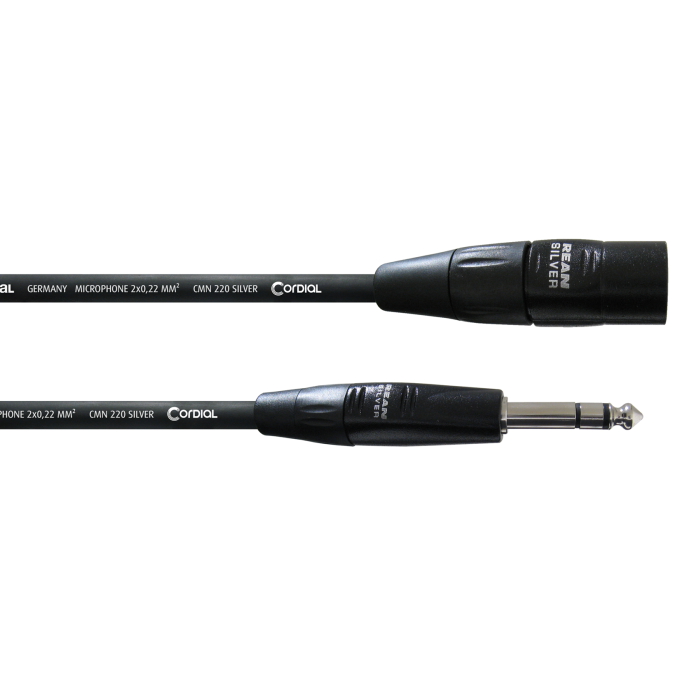

The Cordial CIM 1.5 MV is an XLR male to TRS jack adapter cable. This cable is ideal to connect the balanced audio output of your audio-interface or drumcomputer with the XLR input of your studio monitors.
The cable is equipped with solid Rean Silver (by Neutrik) connectors. The solid Cordial 'essentials cable 1' provides a good signal transfer. Perfect for the studio!
Specifications:
- length: 1.5 mtr.
- XLR male - TRS jack
- diameter cable: 5.9 mm
- AWG (American Wire Gauge**): AWG 24
- Resistance (Conductor resistance): 80 Ohm/km
- Capacity cond.-cond: 80 pF/m
**AWG means American Wire Gauge and is an American standard that specifies the cross section of a round wire by a numerical code. Important to remember is that the size of the wire is measured without insulation. The higher the number, the smaller the diameter and the thinner the wire. Thicker wire carries more current because there is less electrical resistance over a given length. Thicker wire is therefore better for longer distances.
**TRS jack means Tip Ring Sleeve jack. Also sometimes (wrongly) called stereo jack. TRS is a balanced jack.
More Information
| Brand | Cordial |
|---|---|
| Ean Code | 4250197622493 |
| Cable length | 100 tot 199 cm |
| Balanced / unbalanced | gebalanceerd |
| Straight or angled | recht - recht |
| Type of connector | jack 6.3 mm TRS |
| Eerste aansluiting | XLR (3-pin) |
| Tweede aansluiting | Jack (6.3mm) |
| Article number | 58013 |
