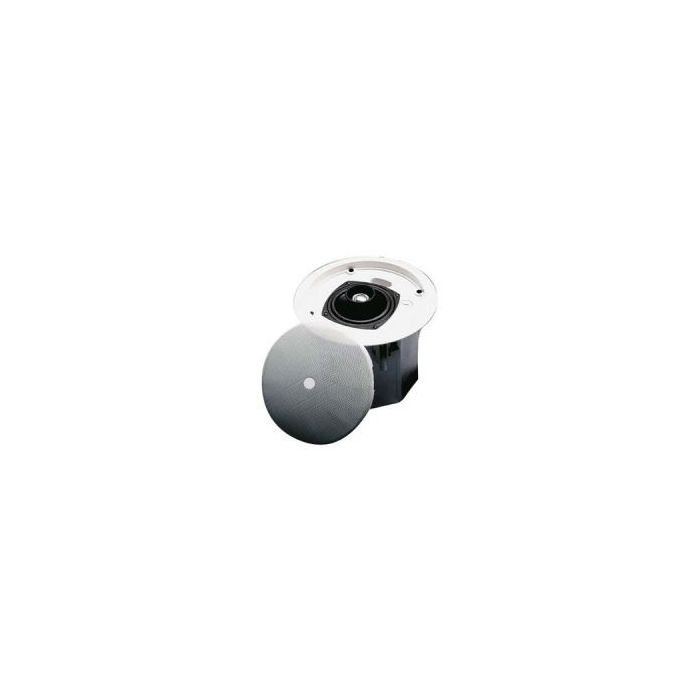

6,5" ceiling speaker 60W incl. trafo, firedome, mounting rails 6,5" speakers
- Metal-plated equipped with 100V /70V line input
- Special fireproof design with iron fire dome (UL 203)
- Iron Net resiting heat up to 130°C
- Power output: REM 40W/Max. 60W
Designed for surface mounting in ceilings
- Speaker: 6.5" - 16 Ohm polypropylene woofer
- Output power: 70V-7.5, 15, 30, 60W 100V-15, 30, 60W, COM
- Impedance: 70V / 100V
- Input voltage: 656 Ohm / 328 Ohm / 164 Ohm / 82 Ohm
- Freq. response: 100 - 20 kHz
- S.P.L: 92 dB(1M/W)
- Mounting: Dog ear flip tabs
- Connection: Removable screw terminal w/loop through output.
- Incl. Accessories: C-shaped support plate & Tile support rails
- Dimensions (DxP): 252 x 210 per cage 165 mm
- Cutting size ceiling hole diameter: 225 mm
- Net Weight (ea): 6,3 kg
Specificaties
| Merk | DAP |
|---|---|
| Ean Code | 8717748038395 |
| Artikelnummer | 38505 |
| Afmeting (verpakking) | 10 x 10 x 10 cm |
